    BSEU40-35 450RPM One Way Freewheel Clutch Bearing Replacement For Conveyor System

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : BSEU40-35
    Certification : ISO SGS
    Price : USD100-USD130 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability : 1000PCS Per Month
    Delivery Time : 7-10 Days
    • Product Details
    • Company Profile

    BSEU40-35 450RPM One Way Freewheel Clutch Bearing Replacement For Conveyor System

    BSEU40-35 Backstop Clutch One Way Freewheel Bearing for Conveyor System


    Features of BSEU backstop Clutch

    BSEU Series Cam Clutch was developed as a user-friendly backstopping Cam Clutch. It has cam and roller construction which is the same as the smaller size BS Series Cam Clutch. The outer race has a special shape which combines the torque arm providing easy installation. These Cam Clutches are shipped pre-lubricated with grease and ready for installation. Most often used as a backstop in applications where limited space is available.

    Dimensions and Capacities of BSEU backstop Clutch

    ItemBSEU40-35
    MaterialGCr15
    Bore dia.35 mm
    Outer dia.118 mm
    Width55 mm
    Torque capacity1440 N.m
    Overrunning limiting speed150 r/min
    Weight3.75 kg
    PackageCarton box, wooden box or as your requirements

    ModelBore SizeTorque
    (N·m)
    Max.
    Overrunning
    (r/min)
    Inner Race
    DD2L1LBFbNEJW. MINW. Max
    Dia
    ( H7)
    Keyway
    BSEU25-20206×2.8216 5008342351240901535510.9990.948
    BSEU25-25258×3.3216 500834235124090153551
    BSEU40-20206×2.81,440 45011860551540110153581.53.7813.363
    BSEU40-25258×3.31,440 45011860551540110153581.5
    BSEU40-30301,440 45011860551540110153581.5
    BSEU40-353510×3.31,440 45011860551540110153581.5
    BSEU40-404012×3.31,440 45011860551540110153581.5
    BSEU70-454514×3.83,140 350165905920801401835101.57.6076.541
    BSEU70-50503,140 350165905920801401835101.5
    BSEU70-555516×4.33,140 350165905920801401835102
    BSEU70-606018×4.43,140 350165905920801401835102
    BSEU70-65653,140 350165905920801401835102
    BSEU70-707020×4.93,140 350165905920801401835102
    BSEU90-75754,700 250190120632080165204015210.0469.265
    BSEU90-808022×5.44,700 2501901206320801652040152
    BSEU90-85854,700 2501901206320801652040152
    BSEU90-909025×5.44,700 2501901206320801652040152

    Mounting and Coupling of BSEU backstop Clutch

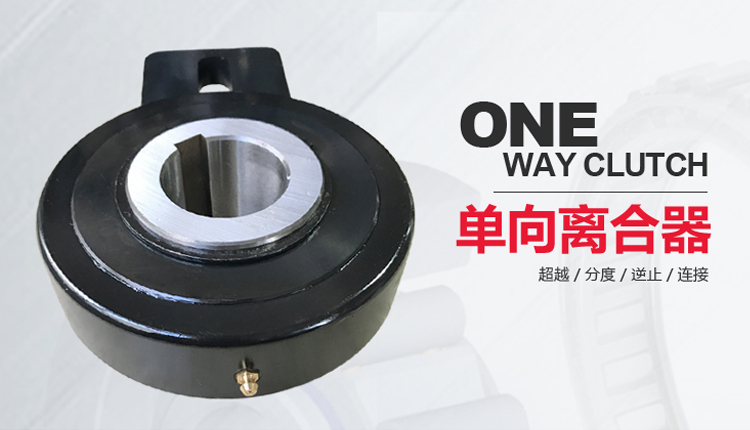

    Pictures of BSEU backstop Clutch
