Brand Name : | SUMA |
Model Number : | KR10 CF3 |
Certification : | ISO SGS |
Price : | USD2.5-USD3.2 PER PIECE |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union,Paypal |
Supply Ability : | 100000 PCS PER MONTH |
Delivery Time : | 3-5 Days |

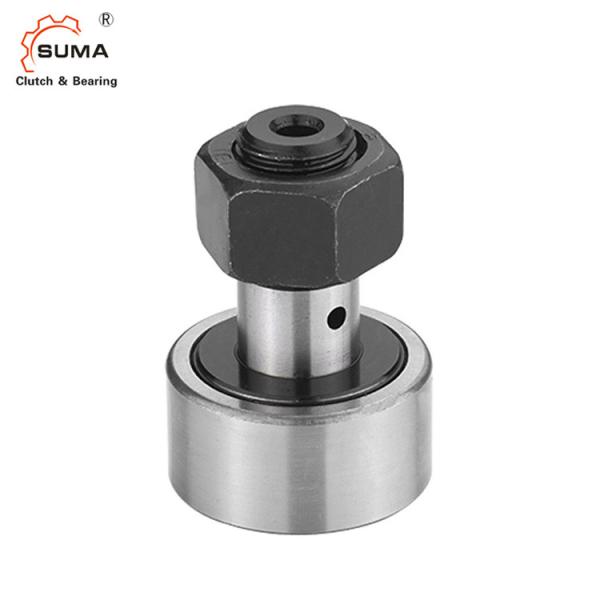

KR10 CF3 Stud Type Track Roller Bearings
Features
Featuring multiple compact structure, high rotating accuracy, large varieties, broad adaptability and easy installation, it can bear high radial load and certain shock load and is widely used in machine tool, metallurgical, textile and printing machinery, processing lines and etc.
Track Roller is a bearing unit composed of machined thick-wall outer ring, needle rollers or cylindrical roller sets, or cage guidance or full complement needle roller, inner ring or bolt and seal.
Technical Datas
Product name | KR10 CF3 Stud Type Cam Follower Bearings |
Model | KR10 CF3 |
Material | GCr15 |
Package | Carton Box / Wooden box, pulley, etc |
Payment terms | TT. L/C, D/A,D/P,Western Union |
Delivery time | 2-4 days for the sample, 7 days for big order |
Dimensions and Capacities
Model | Weight (gram) | d mm | D mm | C mm | B1 mm | B2 mm | G | G1 mm | |
No Seal | Reference model | ||||||||
CF 3 | KR10 | 4.5 | 3 | 10 | 7 | 17 | 9 | M3X0.5 | 5 |
CF 4 | KR12 | 7.5 | 4 | 12 | 8 | 20 | 11 | M4X0.7 | 6 |
CF 5 | KR13 | 10.5 | 5 | 13 | 9 | 23 | 13 | M5X0.8 | 7.5 |
CF 6 | KR16 | 18.5 | 6 | 16 | 11 | 28 | 16 | M6X1 | 8 |
CF 8 | KR19 | 28.5 | 8 | 19 | 11 | 32 | 20 | M8X1.25 | 10 |
CF10 | KR22 | 45.0 | 10 | 22 | 12 | 36 | 23 | M10X1.25 | 12 |
CF10-1 | KR26 | 60.0 | 10 | 26 | 12 | 36 | 23 | M10X1.25 | 12 |
CF12 | KR30 | 95.0 | 12 | 30 | 14 | 40 | 25 | M12X1.5 | 13 |
CF12-1 | KR32 | 105.0 | 12 | 32 | 14 | 40 | 25 | M12X1.5 | 13 |
CF16 | KR35 | 170.0 | 16 | 35 | 18 | 52 | 32.5 | M16X1.5 | 17 |
CF18 | KR40 | 250.0 | 18 | 40 | 20 | 58 | 36.5 | M18X1.5 | 19 |
CF20 | KR47 | 460.0 | 20 | 47 | 24 | 66 | 40.5 | M20X1.5 | 21 |
CF20-1 | KR52 | 385.0 | 20 | 52 | 29 | 66 | 40.5 | M20X1.5 | 21 |
CF24 | KR62 | 815.0 | 24 | 62 | 29 | 80 | 49.5 | M24X1.5 | 25 |
CF24-1 | KR72 | 1,140 | 24 | 72 | 29 | 80 | 49.5 | M24X1.5 | 25 |
CF30 | KR80 | 1,870 | 30 | 80 | 35 | 100 | 63 | M30X1.5 | 32 |
CF30-1 | KR85 | 2.030 | 30 | 85 | 35 | 100 | 63 | M30X1.5 | 32 |
CF30-2 | KR90 | 2,220 | 30 | 90 | 35 | 100 | 63 | M30X1.5 | 32 |
