    GFR...F2F3 GFR...F3F4 1 Way Freewheel Clutch Overrunning Backstop Bearings

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : GFR...F2F3 / GFR...F3F4
    Certification : ISO SGS
    Price : USD600-USD650 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability : 1000PCS Per Month
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

    GFR...F2F3 GFR...F3F4 1 Way Freewheel Clutch Overrunning Backstop Bearings

    GFR...F2F3 GFR...F3F4 1 Way Freewheel Clutch Overrunning

    Backstop Bearings

    Features

    Types GFR..F2F3/F3F4 are roller type freewheels, self-contained, sealed and bearing supported, using two 160.. series bearings.
    They use the GFR base module. Units must be oil lubricated before use if they are delivered disassembled and in any case for the F3F4 combination. These cover combinations are primarily used as backstops, as shown overleaf. The F3 cover acts as a torque arm and has an integrated stop bolt. The stop bolt should go into a slot in a fixed part of the machine.
    F2 and F4 covers are used to close the unit. They are equipped with 3 screws for oil filling, drain and level.

    Technical Datas




    Dimensions and Capacities

    TypeSizeTorqueOverrun speedDIMENSIONSWeight









    GFR..F2-F3
    GFR..F3-F4
    dH7TKN1)nimax2)DD2CL 1L2L3L4FEL5f
    [mm][Nm][min-1][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][kg]
    1255310062201042641013594460.51.4
    151252800682510527810136247100.81.8
    201812400753012578211157254100.82.3
    2528816009040166085141884621013.4
    30500130010045166895141892681014.5
    3572512001105020741021825102761215.6
    401025850125552086115182511285121.58.5
    451125740130602586115222512090121.58.9
    5021255801507025941232225135102121.512.8
    5526255501607532104138253014210815216.2
    6035005301708032114147253014511215219.3
    70575050019090381341683035175135162.523.5
    808500480210105381441783035185145162.532
    901450045023012050158192404520515516347.2
    1002000035027014050182217404523018016376
    13031250250310160682122505560268205183110
    15070000200400200682462865560325255204214

    Notes:

    1) T max = 2 × T KN

    2) Inner race overruns
    3) Outer race overruns

    Mounting Example

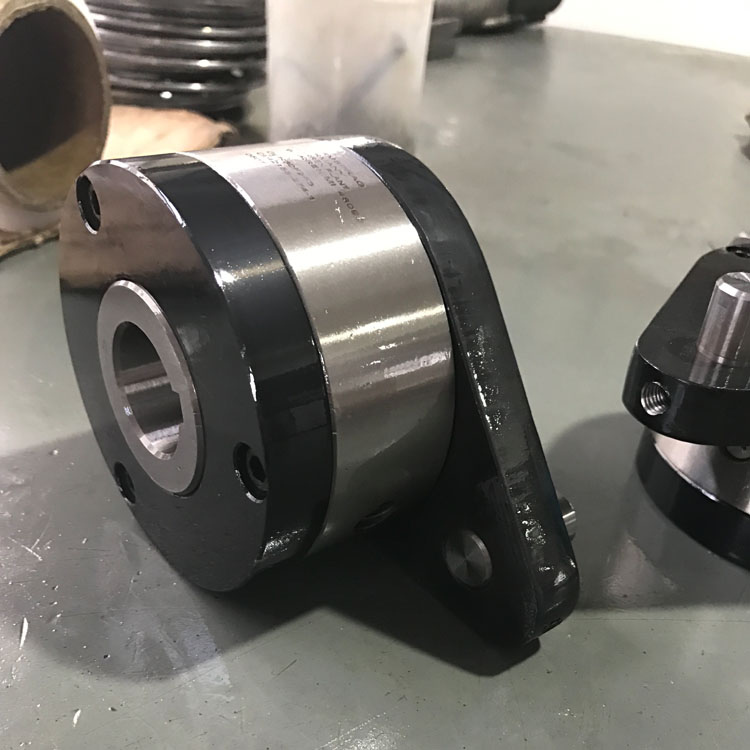

    Pictures
