    HF Series HF0812 One Way Needle Bearings

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : HF0812
    Certification : ISO SGS
    Price : USD0.18-USD0.35 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability : 100000PCS Per Month
    Delivery Time : 1-2 Day
    • Product Details
    • Company Profile

    HF Series HF0812 One Way Needle Bearings

    HF Series HF0812 One Way Needle Bearings HF One Way Needle Bearing.pdf


    Technical Datas of HF0812 One Way Needle Bearings

    HF Series One Way Needle Bearings
    Outer Race Material: ST14

    Needle Material: GCr15
    Inner Bore Range: 3-35mm
    Outer Bore Range: 6.5-42mm
    Height Range: 6-20mm
    Torque Range: 0.2-121Nm
    Package: Roll pack + Carton Box

    Dimensions and Capacities of HF0812 One Way Needle Bearings

    Shaft Dia.Bearing DesignationMassDimensionsPermissible TorqueLimiting Speed
    FwDCRotating Shaft Min-1Rotating Outer Ring Min-1
    mmPlastic SpringsSteel SpringsgmmNmrpmrpm
    3HF0306KF0.936.560.2360007000
    4HF0406KF--14860.34340008000
    HF0406KFR--14860.1340008000
    6HF0608KF2.861081.52000011000
    HF0612KFHF06123610121.762300013000
    HF0612KFRHF0612R3610121.762300013000
    HF0612103.56121032000013000
    8HF0812KFHF08123.5812123.151700012000
    HF0812KFRHF0812R3.58121241700012000
    --HF0612103.28121031600012000
    --HF0814103.6814104.61500011000
    --HF0816104.1816105.51500011000
    --HF08141248141251600012000
    10HF1012KFHF101241014125.31400011000
    HF1012KFRHF1012R41014121.51400011000
    12--HF12161112181612.2110008000
    14--HF14161314201617.395008000
    16--HF16161416221620.585007500
    18--HF18161618241624.175007500
    20--HF20161720261628.570006500
    25--HF2520302532206655005500
    30--HF3020363037209045004500
    35--HF35204035422012139003900
    HF Series HF0812 One Way Needle Bearings

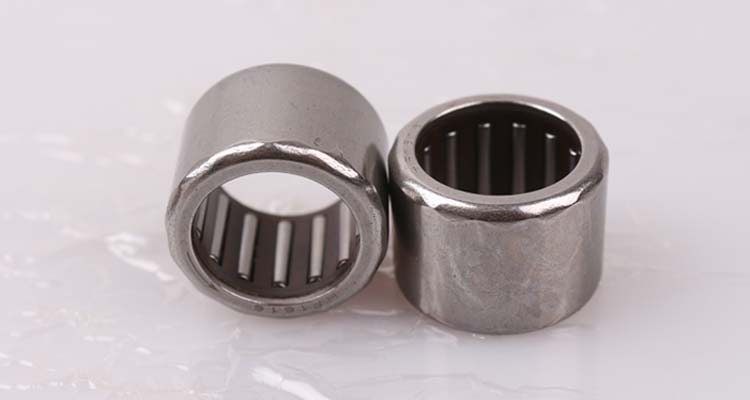

    Pictures of HF0812 One Way Needle Bearings
    HF One Way needle bearing are one-directional clutches, which transmit torques in a single path ;
    are to be had without or with an incorporated bearing arrangement ;
    provide very particular indexing ; permit excessive indexing frequencies ;
    have a low overrunning frictional torque ;
    are to be had without or with greasing ;
    are specifically compact in a radial path and consequently allow extraordinarily compact designs ;
    are appropriate for housing substances crafted from steel, mild steel or plastic ;
    may mixed with drawn cup needle rollers bearings with open ends HK and drawn cup needle roller bearings with closed end BK ; have an in depth variety of applications, as an example as indexing clutches, back-preventing clutches and overrunning clutches .
