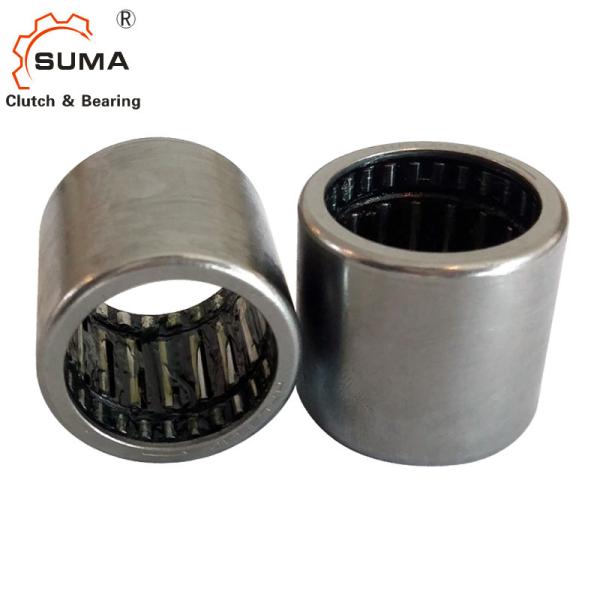

    HFL1226 12*18*26mm Needle Roller One Way Clutch

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : HFL1226
    Certification : ISO SGS
    Price : USD0.8-USD01 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability : 1000PCS Per Month
    Delivery Time : 2-3 Days
    • Product Details
    • Company Profile

    HFL1226 12*18*26mm Needle Roller One Way Clutch

    HFL1226 12*18*26mm Needle Roller One Way Clutch

    Technical Datas

    Bearing-Integrated Shell Type One-Way Clutch HFL (HFL1226) has a roller bearing on each end of the clutch to support radial loads, and a drawn cup outer steel shell that provides a small cross-section for use in restricted spaces.

    The rollers are made of through-hardened, high-carbon chromium steel for heat tolerance and durability, and the assembly comes packed with lithium soap grease.


    ItemHFL Series One Way Needle Bearings
    MaterialGCr15 / ST14 / Stainless Steel
    Inner Bore Range12mm
    Outer Bore Range18mm
    Height Range26mm
    Torque Range12.2Nm
    PackageRoll pack + Carton Box

    Dimensions and Capacities

    HFL1226 12*18*26mm Needle Roller One Way Clutch

    Shaft

    Dia.

    Clutch DesignationMass

    Borndary

    Dimensions

    TorqueLimiting Speed

    Basic Load

    Ratings

    FwDCShaftOuter RingCCo
    Min-1Min-1
    KN
    mmPlastic SpringsSteel SpringsgmmNmrpm
    3HFL0308KF--333.681--------
    4HFL0408KF--3.54881.5--------
    6HFL0615KFHFK06154610151.762300013000----
    HFL0615KFRHFL0615R4610150.52300013000----
    --HFL061012K561012--2100012000----
    8--HFL081212K681212--2000012000----
    --HFL081412K781412--1900012000----
    HFL0822KFHFL08227812223.1517000120004.054.15
    HFL0822KFRHFL0822R78122211700012000----
    10HFL1022KFHFL102281014225.314000110004.34.65
    HFL1022KFRHFL1022R81014221.51400011000----
    12--HFL12261812182612.21100080006.36.5
    14--HFL14262014202617.3950080007.17.7
    16--HFL16262216222620.5850075007.79
    18--HFL18262518242624.1750075008.310.3
    20--HFL20262720262628.5700065008.911.5
    25--HFL253044253230665500550010.914.1
    30--HFL303051303730904500450012.617.6
    35--HFL353058354230121390039001319.3
