    NYD 250 Low Speed Elevator 25000 Nm Cam Backstop Bearing

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : NYD250 NJ160
    Certification : ISO SGS
    Price : USD1100-USD1200 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability : 1000PCS Per Month
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

    NYD 250 Low Speed Elevator 25000 Nm Cam Backstop Bearing

    NYD 250 Low Speed Elevator 25000 Nm Cam Backstop Bearing

    Features of NYD NJ Backstop

    Backstop NJ(NYD,ND) with torque arm are without ball bearings support. The Backstop are arranged on through shafts or shaft ends.
    The backstop NJ are used as:
    Backstops for low-speed applications.

    They are designed for use in inclined conveyor-belt systems, elevators and pumps. Taconite seals protect the backstops when conditions are dirty and dusty.

    MODELS NJ65-NJ450

    Dimensions and Capacities

    TypeLoad CapacityInner Race Max. SpeedDrag TorqueBoreSize (mm)Weight
    N.mr/minN.mmmABDHh1ΦhLL1kg
    ND16 (NJ65)1600150450-655061602261613.5308510613.5
    ND25 (NJ75)2500560-75651702691916.53516.1
    ND60 (NJ85)6000870-859592103292920.54511013529.2
    ND80 (NJ95)80001080-95105230382325513837.2
    ND110 (NJ110)110001590-1101101227042540266014146.2
    ND160 (NJ130)1600010020100-130120320506366513016182.8
    ND250 (NJ160)2500035120-160120203606123231140183125
    ND380 (NJ200)3800045160-200130430623434170160207180
    ND500 (NJ220)500008075160-22023825950082080-230303351
    ND650 (NJ230)650008085180-24026027954090090-250323525
    ND900 (NJ250)900005095180-2502883236001000100-290367675
    ND1250 (NJ270)125000100200-2702986501100110-737
    ND1800 (NJ300)180000110230-3003563357801300135-2903921123
    ND2700 (NJ320)270000140250-32038634585015001353204121425
    ND3200 (NJ350)320000160250-35041436093016001353604261955
    ND5200 (NJ420)520000220320-420474484103018001654505502930
    ND7000 (NJ450)700000250350-450526494109020001654805743380

    Mounting

    The back driving torque is restrained by the torque arm. The torque arm must not be clamped into position. It must have 0.5 inch play in the axial and in the radial direction.
    NJ backstops are supplied for a clearance fit. Set screws on the inner ring are provided for axial retention, shaft collars are not required.

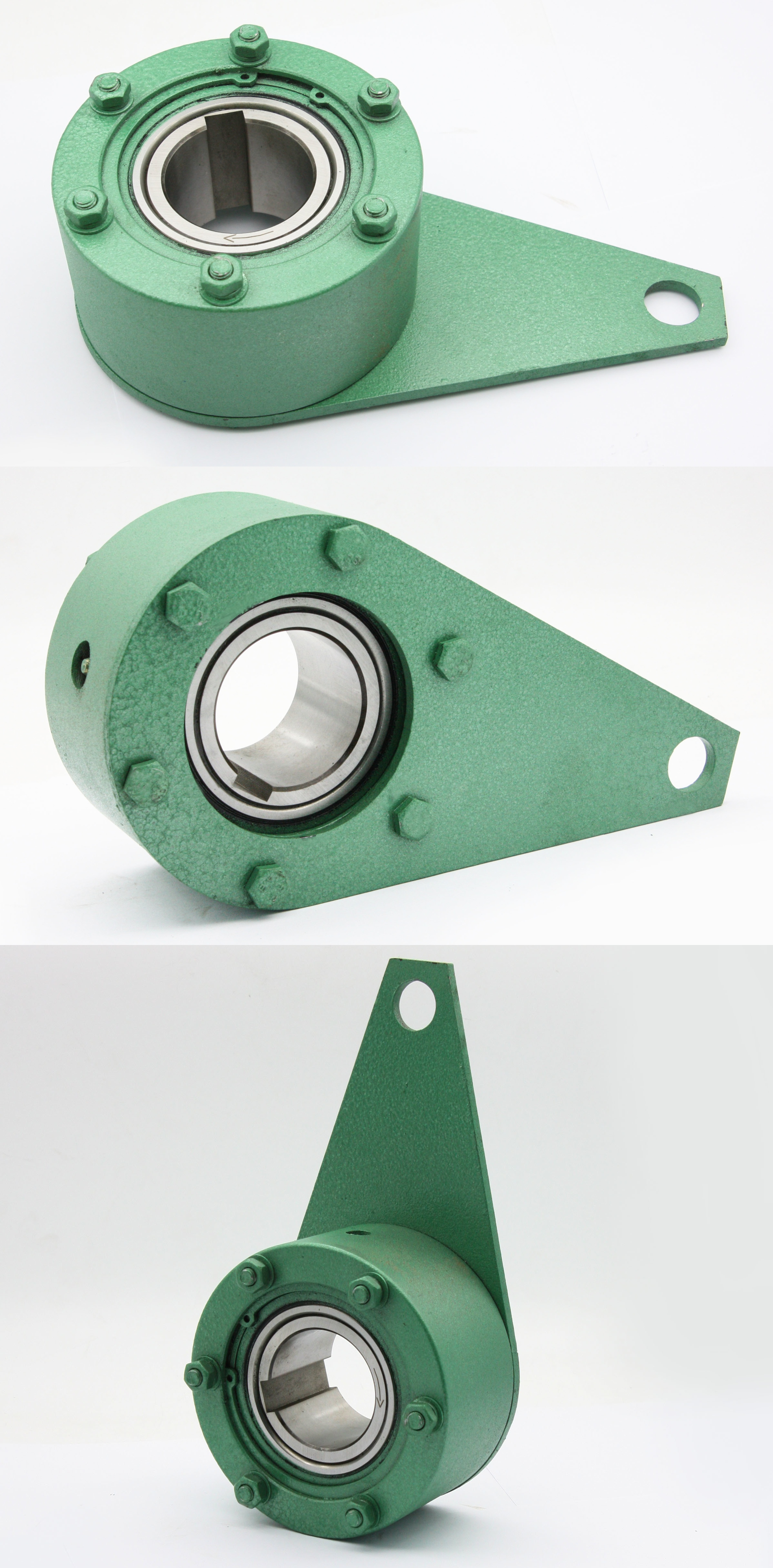

    Piciures
