BSEU90-85 Bucket Backstop Clutch Freewheel Roller 1 Way Bearing

Ask Lasest Price
Brand Name :	SUMA
Model Number :	BSEU90-85
Certification :	ISO SGS
Price :	USD240-USD285 PER PIECE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :	1000PCS Per Month
Delivery Time :	7-10 Days

Add to Cart

Product Details
Company Profile

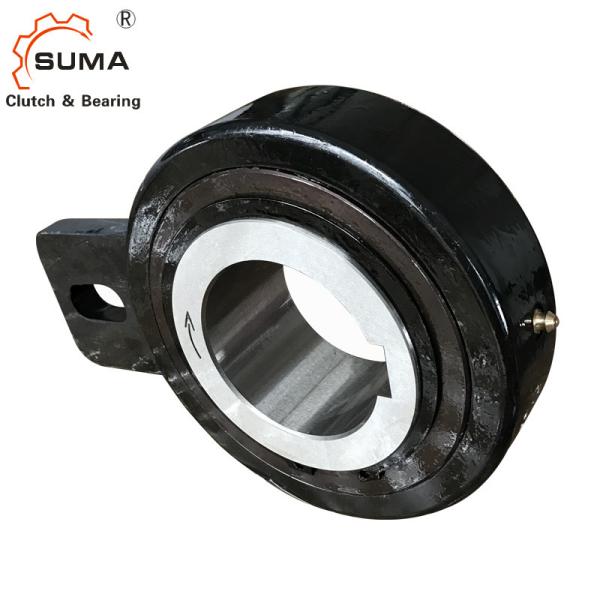

BSEU90-85 Bucket Backstop Clutch Freewheel Roller 1 Way Bearing

BSEU90-85 Bucket Backstop Clutch Freewheel Roller 1 Way Bearing

Features

BSEU series Cam Clutch was developed as European style Backstopping Cam Clutch which has easy usage. It has Cam & Roller construction that the roller works as a bearing same as the small size BS series Cam Clutch.

The outer race has special shape which was combined the torque arm, so only stopping the rotation is required.

You can select the correct model from various bore size from 20 mm to 90 mm in each 5 mm. Backstopping for the country elevator or the foods conveying conveyor which is used in the factory is the recommendation.

The recommends BS series Cam Clutch in the very dusty environment condition or the inclined conveyor and the bucket elevator which are used in outside location.

Dimensions and Capacities

Item	BSEU90-85
Material	GCr15
Bore dia.	85 mm
Outer dia.	190 mm
Width	63 mm
Torque capacity	4700 N.m
Overrunning limiting speed	250 r/min
Weight	9.265-10.046 kg
Package	Carton box, wooden box or as your requirements

Model	Bore Size		Torque Capacity (N·m)	Max. Overrunning (r/min) Inner Race	D	D2	L1	L	B	F	b	N	E	J	W. MIN	W. Max
Model	Dia ( H7)	Keyway	Torque Capacity (N·m)	Max. Overrunning (r/min) Inner Race	D	D2	L1	L	B	F	b	N	E	J	W. MIN	W. Max
BSEU25-20	20	6×2.8	216	500	83	42	35	12	40	90	15	35	5	1	0.999	0.948
BSEU25-25	25	8×3.3	216	500	83	42	35	12	40	90	15	35	5	1	0.999	0.948
BSEU40-20	20	6×2.8	1,440	450	118	60	55	15	40	110	15	35	8	1.5	3.781	3.363
BSEU40-25	25	8×3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU40-30	30	8×3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU40-35	35	10×3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU40-40	40	12× 3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU70-45	45	14×3.8	3,140	350	165	90	59	20	80	140	18	35	10	1.5	7.607	6.541
BSEU70-50	50	14×3.8	3,140	350	165	90	59	20	80	140	18	35	10	1.5
BSEU70-55	55	16×4.3	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU70-60	60	18×4.4	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU70-65	65	18×4.4	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU70-70	70	20×4.9	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU90-75	75	20×4.9	4,700	250	190	120	63	20	80	165	20	40	15	2	10.046	9.265
BSEU90-80	80	22×5.4	4,700	250	190	120	63	20	80	165	20	40	15	2
BSEU90-85	85	22×5.4	4,700	250	190	120	63	20	80	165	20	40	15	2
BSEU90-90	90	25×5.4	4,700	250	190	120	63	20	80	165	20	40	15	2

Mounting and Coupling
