RSBW40 Bucket Elevetor Backstop Clutch BearingRSBW.pdf
Features :

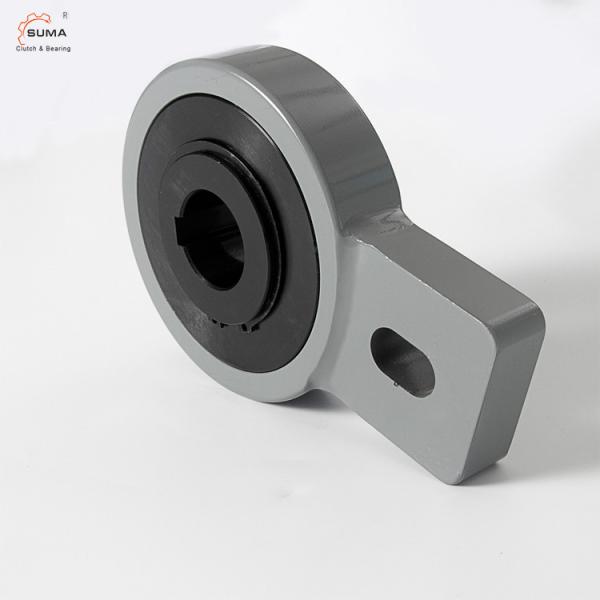

Type RSBW Backstop Clutch is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected O rings.
Delivery :
RSBW Backstop Clutch Unit is delivered grease lubricated ready for installation in either a horizontal or vertical position.
Application :
Primarily used as a backstop. This type provide a high torque capacity with a minimum space requirement.

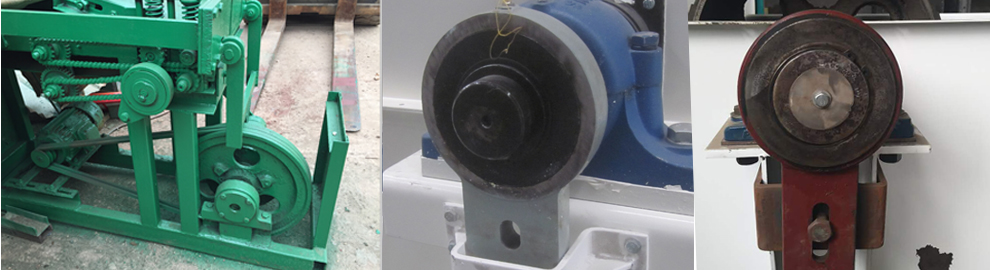

Widely used on Bucket Elvator, Conveyor System, Grain Silo Equipment , etc .

The RSBW backstop clutch, renowned for its innovative design featuring a DC sprag type dual-cage retainer assembly, finds diverse applications across various industries. This specialized backstop is self-contained, boasting a combined outer race and torque arm that houses plain bearings specifically engineered for efficient operation at low rotational speeds. The integration of shield-protected O-Rings enhances its sealing capabilities.

In application, the RSBW backstop clutch serves as a reliable mechanism to prevent reverse rotation, making it a crucial component in systems where the uninterrupted transmission of torque is essential. Industries such as manufacturing, conveyor systems, and power generation benefit from the high torque capacity offered by this model. Its compact design ensures minimal spatial requirements, making it an ideal choice for installations where space is a critical consideration.

Whether safeguarding equipment from potential damage caused by reverse rotation or ensuring the smooth operation of machinery, the RSBW backstop clutch stands as a testament to cutting-edge engineering and its versatile utility in a myriad of industrial scenarios.

Installation :

The design allows installation in difficult environments such a high humidity or water splash areas. A bolt, secured to a fixed part of the machine and passing through the slot in the torque arm, provides the rotational stop.
Radial clearance on this bolt should be equal to 1-3% of the slot width. The torque arm and the bearings must not be prestressed .

Technical Datas

Dimensions and Capacities

Pictures

PACKAGE OF RSBW BACKSTOP CLUTCH

FAQ

Q: How do you pack the Backstop Clutch ?

• Total less than 25 KG : 29*28*19CM carton box

• Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the RSBW Backstop Clutch Sample from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the Backstop Clutch Order in time?

• Small items: In stock.
• Medium Items: 10-15 Days
• Big items: 20-25 Days
