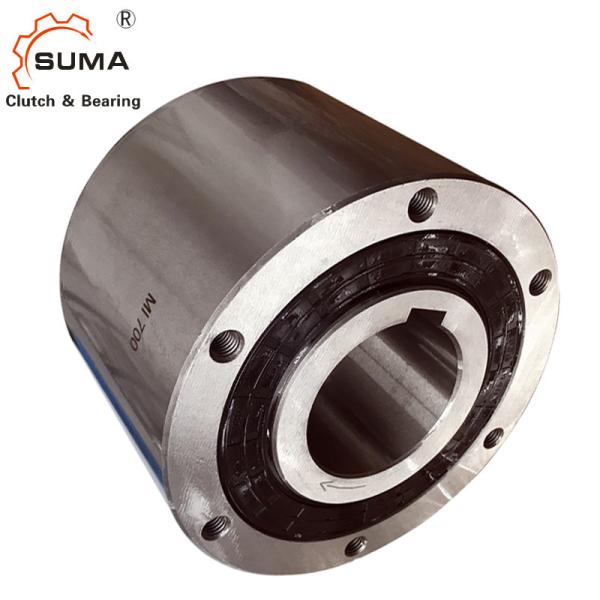

MG500 High Speed 1 Directional Backstop Cam Clutch Bearing

Ask Lasest Price
Brand Name :	SUMA
Model Number :	MG500 MI500
Certification :	ISO SGS
Price :	USD130-USD180 PER PIECE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :	1000PCS Per Month
Delivery Time :	7-10 Days

Add to Cart

Product Details
Company Profile

MG500 High Speed 1 Directional Backstop Cam Clutch Bearing

MG500 High Speed 1 Directional Backstop Cam Clutch Bearing

Features

1. Self contained clutch designed for high speed applications.

2. Cam cage assembly engineered for optimum performance and increased capacity.

3. Two ball bearings included to support radial load and concentricity between races.

4. Positive contact lip or felt seals provided for grease or oil lubrication.

5. Tapped holes are machined on ends of outer race for mounting auxiliary components.

6. Metric bore and keyway available.

7. Mounting accessories available.

MG300A – 700A Series

Primarily used for general duty applications, Overrunning, back-stopping and light duty indexing. The MG model offers precise spring energizing to provide long overrunning wear life.

MI300A – 700A Series

Recommended for high performance indexing, used on applications greater than 150 strokes per minute or applications requiring high indexing accuracy. Incorporating a patented, low inertia

cage and heavy duty energizing spring for quick cam reaction.

MO300A – 700A Series

Made with felt grease seals to minimize seal drag for high speed inner race overrunning applications. The MO model is delivered with standard grease lubrication.

MR300A – 700A Series

Intended for high-speed outer race overrunning, incorporating a unique cam cage construction that uses centrifugal force to minimize cam drag .The driving speed of the clutch cannot exceed the rpm shown in the table for the inner race.

Technical Datas

Item	MG/MR/MO/MI500A
Precision	P6
Type	cam
Bore size (mm)	44.45
Outer race (mm)	92.08
Torque (KN)	1593
Max. Inner race overrunning (cycle/min)	2700
Drag Torque(Nm)	0.5
Weight (kg)	5
Package	Carton Box / Wooden Box
Delivery time	7-10 days after order confirmed
Payment terms	L/C, T/T, D/P, D/A, Western Union

Dimensions and Capacities

Model	Torque	Drag	Max.		Max.	Bore Size		A	B (h7)	C	PCD D	E	F	S	H-M	Weight (kg)
			Overrunning												No.of
	Capacity	Torque	(r/min)		Indexing										Tapped Holes
	(Nm)	(Nm)	Inner	Outer	(cycle /min)	Dia.	Key way								×Size×Pitch
			Race	Race		(H7)
MG 300	314	0.23	2800	900	_	19	5x2	63	77	60	66	10.4	28.5	13	4xM6xP1.0	1.8
MI 300		0.31	50	_	300
MG 400	539	0.29	2600	800	_	22	5x2	70	88	67	73	10.7	31.7	16	4XM8xP1.25	2.7
MI 400		0.38	50	_	300
MG 500	1620	0.51	2400	800	_	31.5	7x3	89	108	86	92	12.3	44.4	16	4XM8xP1.25	5
MI 500		0.68	50	_	300
MG 600	3140	0.85	2100	700	_	50	12x3.5	95	136	92	120	12.8	69.8	16	6xM8xP1.25	8.6
MI 600		1.54	30	_	300
MG 700	5880	1.7	1500	500	_	70	18x6	127	180	124	160	19.8	101.5	20	6xM10xP1.5	19.5
MI 700		2.63	30	_	300
MG 750	9500	3.43	1800	600	_	85	24x6	153	200	150	175	75	110	25	8xM14xP2.0	37
MI 750		4.12	30	_	300
MG 800	17600	5.39	1300	475	_	110	28x7	158	250	155	220	77.5	140	25	8xM16xP2.0	46.5
MI 800		8.33	20	_	300
MG 900	24500	6.77	1200	400	_	135	35x9	165	300	160	265	80	170	32	10xM16xP2.0	70.5
MI 900		9.41	20	_	300
MG 1000	33800	8.14	1200	325	_	160	38x10	188	370	180	325	90	200	32	12xM16xP2.0	108.5
MI 1000		12.74	2	_	300
MG 1100	78400	15	350	_	_	185	45x14	260	470	250	415	125	260	40	12xM20xP2.5	250
MI 1100		22.15	20	_	150
MG 1200	95100	17.64	300	_	_	200	45x14	260	500	250	440	125	280	45	12xM24xP3.0	280
MI 1200		27.54	20	_	150
MG 1300	176000	18.72	250	_	_	250	56x17.5	280	600	260	530	130	340	50	12xM30xP3.5	410
MI 1300		28.13	20	_	150

Model No.	Torque capacity	Drag Torque	Max Overrunning speed		Dimensions						Weight
			Inner race	Outer race	A	B	C	D	E	F
	N-m	N-m			mm	mm	mm	mm	mm	mm	kg
MG300A	373	0.2	2900	800	76.15/ 76.20	66.68	60.33	63.5	28.58	8.9	2
MI300A			-	-
MO300A			3600	800
MR300A			800	2900
MG400A	542	0.3	2700	800	88.85/ 88.90	73.03	66.68	69.9	31.75	11.4	3
MI400A			-	-
MO400A			3600	800
MR400A			800	2700
MG500A	1593	0.5	2400	750	107.90/ 107.95	92.08	85.73	88.9	44.45	12.4	5
MI500A			-	-
MO500A			3000	750
MR500A			750	2400
MG600A	3051	0.9	1800	700	136.47/ 136.53	120.65	92.08	95.3	69.85	12.7	9
MI600A			-	-
MO600A			2400	700
MR600A			700	2100
MG700A	6779	1.8	1200	400	180.92/ 180.98	158.75	123.83	127.0	101.60	17.3	20
MI700A			-	-
MO700A			2000	400
MR700A			400	1750

Model No.	Dimensions								No.of Tap (Mt.) Holes	Thread Size		Usable Thread Depth		Lube	Lube Cap Oz	Weight
	C		D		E		F
	Inch	mm	Inch	mm	Inch	mm	Inch	mm		Inch	mm	Inch	mm			lbs	kg
MG300A	2.375	60.33	2.50	63.5	1.125	28.58	0.35	8.9	4	0.250-28	6.35-711	0.500	12.70	Oil	0.85	4	2
MI300A														Oil	1.25
MO300A														Grease	0.5
MR300A														Oil	0.85
MG400A	2.625	66.68	2.75	69.9	1.250	31.75	0.45	11.4	4	0.313-24	7.94-610	0.625	15.88	Oil	1.1	6	3
MI400A														Oil	1.4
MO400A														Grease	0.5
MR400A														Oil	1.1
MG500A	3.375	85.73	3.50	88.9	1.750	44.45	0.48	12.4	4	0.313-24	7.94-610	0.625	15.88	Oil	1.8	11	5
MI500A														Oil	3.0
MO500A														Grease	1.0
MR500A														Oil	1.8
MG600A	3.625	92.08	3.75	95.3	2.750	69.85	0.50	12.7	6	0.313-24	7.94-610	0.625	19.05	Oil	2.8	19	9
MI600A														Oil	4.5
MO600A														Grease	1.5
MR600A														Oil	2.8
MG700A	4.875	123.83	5.00	127.0	4.000	101.60	0.68	17.3	8	0.375-24	9.53-610	0.750		Oil	4.6	43	20
MI700A														Oil	10.9
MO700A														Grease	2.9
MR700A														Oil	4.6

Model	Torque Capacity		Maximum Overrunning rpm		Nominal Overrunning Drag		Stock Bores1		Keyways1		Dimensions
											A		B
	Lb-ft	N-m	Inner Race	Outer Race	Lb-ft	N-m	Inch	mm	Inch	mm	Inch	mm	Inch	mm
MG300A	275	373	2900	800	0.17	0.2	0.500	12.70	0.125×0.167	3.18×4.24	3.000 2.998	76.15 /76.20	25/8	66.68
MI300A			-	-			0.625	15.88	0.188×0.094	4.76×2.38
MO300A			3600	800			0.750	19.05	0.188×0.094	4.76×2.38
MR300A			800	2900
MG400A	400	542	2700	800	0.21	0.3	0.625	15.88	0.188×0.094	4.76×2.38	3.500 3.498	88.85 /88.90	27/8	73.03
MI400A			-	-			0.750	19.05
MO400A			3600	800			0.875	22.23
MR400A			800	2700
MG500A	1175	1593	2400	750	0.38	0.5	0.875	22.23	0.188×0.094	4.76×2.38	4.250 4.248	107.90 /107.95	35/8	92.08
MI500A			-	-			1.000	25.40	0.25×0.125	4.76×2.38
MO500A			3000	750			1.125	28.58	0.25×0.125	6.35×3.18
MR500A			750	2400			1.250	31.75	0.25×0.125	6.35×3.18
MG600A	2250	3051	1800	700	0.63	0.9	1.250	31.75	0.25×0.125	6.35×3.18	5.375 5.373	136.47 /136.53	43/4	120.65
							1.375	34.93	0.313×0.156	7.94×3.97
MI600A			-	-			1.500	38.10	0.375×0.188	9.53×4.76
							1.625	41.28	0.375×0.188	9.53×4.76
MO600A			2400	700			1.750	44.45	0.375×0.188	9.53×4.76
							1.937	49.20	0.50×0.188	9.53×4.76
MR600A			700	2100			2.000	50.80	0.50×0.188	12.7×4.76
MG700A	5000	6779	1200	400	1.3	1.8	2.000	50.80	0.50×0.250	12.7×6.35	7.125 7.123	180.92 180.98	61/4	158.75
MI700A			-	-			2.250	57.15	0.50×0.250	12.7×6.35
							2.437	61.90	0.50×0.250	12.7×6.35
MO700A			20000	400			2.500	63.50	0.625×0.313	15.88×7.94
							2.750	69.85	0.625×0.313	15.88×7.94
MR700A			400	1750			2.937	74.60	0.625×0.125	15.88×3.18

Mounting and Coupling
