BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing

BR20 One way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing

1. We recommend using shaft tolerances of h6 or h7 for Cam Clutch installation.
2. Use a ISO R773 (DIN 6885.1) parallel key make sure that the key does not move in the keyway. A loose key will damage the Cam Clutch.
3. When installing the Cam Clutch over a shaft, please follow the procedure outlined below. Never strike the clutch with a steel hammer or apply unnecessary impact loads.
1) Verify Cam Clutch direction of rotation. The arrow on the inner race shows the free running (cam disengaged) direction. Make sure that the direction of cam engagement matches the intended application.
2) Tap the inner race lightly with a soft hammer moving around the race circumference so the Cam Clutch moves slowly and uniformly onto the end of the shaft. Make sure that the outer race does not become dislodged.
3) Place an end plate over the inner race and use the mounting bolts to pull the Cam Clutch onto the shaft as shown in the diagram at right.
4) Tighten the end plate securely.

Dimensions and Capacities

■ MODELS BR20 TO BR240

For Backstop and Overrunning Applications

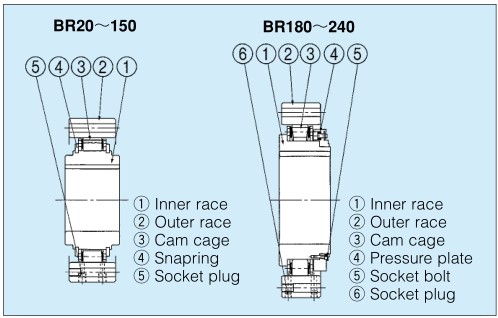

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing

Dimension (Open Type)

Model	Bore Size			A	B	C (h7)	D (h7)	E	F	Mounting Holes		Pulloff Holes	H min	I	J	K	L	M max
	Dia. (H7)	Keyway	Chamfer O							PCD	No.-Dia.	No.-Size
	Dia. (H7)	Keyway	Chamfer O							G	Q-R	S-T
BR 20	20	6x2.8	0.5	35	35	90	66	40.7	40.7	78	6- 6.6	2-M 6	53	0	0	5	5	4.0
BR 25	25	8x3.3	0.5	35	35	95	70	44.7	44.7	82	6- 6.6	2-M 6	58	0	0	5	5	4.0
BR 30	30	8x3.3	1.0	35	35	100	75	49.7	49.7	87	6- 6.6	2-M 6	64	0	0	5	5	4.0
BR 35	35	10x3.3	1.0	35	35	110	80	54.7	54.7	96	8- 6.6	2-M 6	70	0	0	5	5	4.0
BR 40	40	12x3.3	1.0	35	35	125	90	64.7	64.7	108	8- 9.0	2-M 8	81	0	0	5	5	4.0
BR 45	45	14x3.8	1.0	35	35	130	95	69.7	69.7	112	8- 9.0	2-M 8	86	0	0	5	5	4.0
BR 50	50	14x3.8	1.0	40	40	150	110	84.7	84.7	132	8- 9.0	2-M 8	103	0	0	7.5	7.5	6.5
BR 60	60	18x4.4	1.5	60	50	175	125	80	80	155	8-11.0	2-M10	110	5	5	7	7	6.0
BR 70	70	20x4.9	1.5	60	50	190	140	95	95	165	12-11.0	2-M10	125	5	5	7	7	6.0
BR 80	80	22x5.4	1.5	70	60	210	160	115	115	185	12-11.0	2-M10	148	5	5	12	12	11.0
BR 90	90	25 x5.4	1.5	80	70	230	180	135	135	206	12-13.5	2-M12	170	5	5	17	17	16.0
BR100	100	28x6.4	1.5	90	80	270	210	143	143	240	12-17.5	2-M16	180	5	5	13.7	13.7	12.0
BR130	130	32 x7.4	2.0	90	80	310	240	173	173	278	12-17.5	2-M16	210	5	5	13.7	13.7	12.0
BR150	150	36x8.4	2.0	90	80	400	310	243	243	360	12-17.5	2-M16	280	5	5	13.7	13.7	12.0
BR180	180	45x10.4	2.0	105	80	400	310	290	270	360	12-17.5	2-M16	280	5	20	11.5	15.9	14.0
BR190	190	45x10.4	2.0	105	80	420	330	310	286	380	16-17.5	2-M16	300	5	20	12.5	8.9	7.5
BR220	220	50x11.4	2.0	105	80	460	360	340	320	410	18-17.5	2-M16	330	5	20	12.5	10.9	9.0
BR240	240	56x12.4	2.0	105	80	490	390	370	350	440	18-17.5	2-M16	360	5	20	12.5	10.9	9.0

Model	Chamfer		U	Oil Plug Position/Dia.			Weight (kg)	Inertial Moment GD2 (kgm2)
Model	N	P	U	V	W	X×PT-Y	Weight (kg)	Inertial Moment GD2 (kgm2)
BR 20	1.5	1.5	30.0	17.5	−	4 × PT-1/16	1.3	2.25 × 10-4
BR 25	1.5	1.5	30.0	17.5	−	4 × PT-1/16	1.4	3.28 × 10-4
BR 30	1.5	1.5	30.0	17.5	−	4 × PT-1/16	1.5	4.44 × 10-4
BR 35	1.5	1.5	22.5	17.5	−	4 × PT-1/8	1.9	5.65 × 10-4
BR 40	1.5	1.5	22.5	17.5	−	4 × PT-1/8	2.4	1.01 × 10-3
BR 45	1.5	1.5	22.5	17.5	−	4 × PT-1/8	2.6	1.22 × 10-3
BR 50	2.5	2.0	22.5	20	−	4 × PT-1/8	4.1	2.64 × 10-3
BR 60	3.5	2.0	22.5	25	−	4 × PT-1/8	7.3	3.73 × 10-3
BR 70	3.5	2.0	15.0	25	−	4 × PT-1/8	8.1	6.65 × 10-3
BR 80	3.5	2.0	15.0	14	32	4 × PT-1/8	12.0	1.77 × 10-2
BR 90	3.5	2.0	15.0	19	32	4 × PT-1/8	16.0	3.16 × 10-2
BR100	4.5	2.0	15.0	20	40	4 × PT-1/4	23.0	6.31 × 10-2
BR130	4.5	2.0	15.0	20	40	4 × PT-1/4	31.0	0.109
BR150	4.5	3.0	15.0	20	40	4 × PT-1/4	58.0	0.365
BR180	4.5	3.0	15.0	20	40	4 × PT-1/4	60.0	0.435
BR190	4.5	3.0	11.25	20	40	4 × PT-1/4	65.0	0.563
BR220	4.5	3.0	10.0	20	40	4 × PT-1/4	76.0	0.789
BR240	4.5	3.0	10.0	20	40	4 × PT-1/4	84.0	1.05

Notes:

1. Package type Cam Clutches are all made to order. To order, please refer to the dimension diagram. Please inform us if the Cam Clutch is to be used in a vertical application, and if the operating environment temperature will be less than –5°C or more than +40°C.

2. There are cases when the free running rotation speed of the inner race will be limited when package type Cam Clutches are installed horizontally,

3. If your application calls for a clutch engagement speed or inner race free running speed not listed in this catalog,please contact TSUBAKI .

Capacities (Open Type)

ModelTorque Capacity (N·m)Inner Race Overrunning SpeedMax. Engagement(r/min)Min.(r/min)Max. (r/min)BR 203068803,600350BR 253848803,600350BR 306078803,600350BR 356867803,600300BR 409807203,600300BR 451,0786703,600280BR 501,7156103,600240BR 603,4794903,600200BR 704,7354803,600200BR 806,5174503,600190BR 908,5264203,000180BR10014,2104602,700180BR13020,3844202,400180BR15033,9083701,300160BR18033,9083703,500160BR19041,1603403,000140BR22051,0583303,000140BR24062,0343103,000130

Dimensions (Package Type)

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing

Model	Bore Size(H7)	Keyway	A	B	C(h7)	D	PCDE	F-G	weight(kg)
BR 20P	20	6X2.8	87	79	94	35	78	6-M 6×12	3.4
BR 25P	25	8X3.3	89	81	98	40	82	6-M 6×12	3.8
BR 30P	30	8X3.3	94	85	103	45	87	6-M 6×12	4.3
BR 35P	35	10X3.3	94	85	112	50	96	8-M 6×12	5.1
BR 40P	40	12X3.3	100	91	130	55	108	8-M 8×16	7.5
BR 45P	45	14X3.8	100	91	135	60	112	8-M 8×16	7.9
BR 50P	50	14X3.8	107	98	152	70	132	8-M 8×16	10.9
BR 60P	60	18X4.4	122	112	180	80	155	8-M10×20	17.5
BR 70P	70	20X4.9	128	118	190	90	165	12-M10×20	19.5
BR 80P	80	22X5.4	148	134	210	105	185	12-M10×20	27
BR 90P	90	25X5.4	152	138	235	120	206	12-M12×24	35
BR100P	100	28X6.4	186	172	275	140	240	12-M16×32	60
BR130P	130	32X7.4	208	188	314	160	278	12-M16×32	80
BR150P	150	36X8.4	226	204	400	200	360	12-M16×32	151
BR180P	180	45X10.4	240	218	400	220	360	12-M16×32	169
BR190P	190	45X10.4	250	242	420	240	380	16-M16×32	193
BR220P	220	50X11.4	250	242	460	260	410	18-M16×32	220
BR240P	240	56X12.4	260	252	490	280	440	18-M16×32	267

Note: Above drawing is an example. Request a certified drawing when ordering, as specifications vary with each model.

Capacities (Package Type)

ModelTorque Capacity (N·m)Inner Race Overrunning SpeedMax. Engagement(r/min)Min.(r/min)Max. (r/min)BR 20P3068803,600350BR 25P3848803,600350BR 30P6078803,600350BR 35P6867803,600300BR 40P9807203,600300BR 45P1,0786703,600280BR 50P1,7156103,600240BR 60P3,4794903,600200BR 70P4,7354803,600200BR 80P6,5174503,600190BR 90P8,5264203,000180BR100P14,2104602,500180BR130P20,3844202,200180BR150P33,9083701,300160BR180P33,9083701,800160BR190P41,1603401,800140BR220P51,0583301,800140BR240P62,0343101,800130

■ USING THE BR SERIES OPEN TYPE CAM CLUTCH

While the Cam Clutch can be disassembled by the user, reassembly may prove difficult. We recommend that you

install the Cam Clutch as delivered.

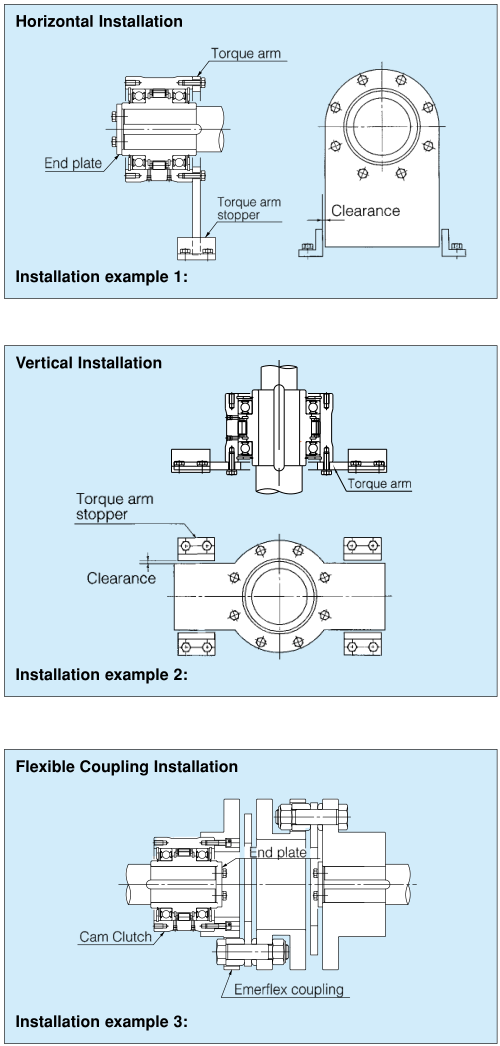

Mounting and Coupling

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing

Installation and Usage

4. If you are installing the outer race first, check the precision of the fit. The tolerances for outer race mounting are shown in the tables at right. Verify that the correct tolerances can be obtained. Out of spec installation could damage the Cam Clutch.
5. To lubricate the Cam Clutch, apply lubricant at the outer circumference of the inner race (see installation diagram). Avoid over lubrication, as it will cause the Cam Clutch to generate excessive heat.
6. When using the Cam Clutch at a reduction gearbox, make sure that oil from the gearbox cannot enter the Cam Clutch. Service life can be significantly shortened if the Cam Clutch comes in contact with gear oils that contain viscosity enhancing additives. Refer to page 80 for lubrication guidelines.
7. When installing a cover or seal support over the outer race, use bolts with a tensile rating of 10.9 or greater. Use a sealing agent or packing material between the mating services to prevent leakage.

■ USING THE BR SERIES PACKAGE TYPE CAM CLUTCH

Similar to previous types, the package type Cam Clutch is designed into a ball bearing cassette that makes

installation with a torque arm and/or coupling fast and easy. The package type Cam Clutch is grease lubricated.

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing

Installation and Usage
1. We recommend using shaft tolerances of h6 or h7 for Cam Clutch installation.
2. Use a ISO R773 (DIN 6885.1) parallel key. Make sure that the key does not move in the keyway. A loose key will damage the Cam Clutch.
3. When installing the Cam Clutch over a shaft, please follow the procedure outlined below. Never hit the clutch with a steel hammer or apply unnecessary impact loads.
1) Verify the Cam Clutch direction of rotation. The arrow on the inner race shows the free running (cam disengaged) direction. Make sure that the direction of cam engagement matches the intended application.
2) Tap the inner race lightly with a soft hammer moving around the race circumference so the Cam Clutch moves slowly and uniformly onto the end of the shaft. Make sure that the outer race does not become dislodged.
3) Place an end plate over the inner race and use the mounting bolts to pull the Cam Clutch onto the shaft as shown in the diagram at right.
4) Tighten the end plate securely to make sure that the Cam Clutch cannot move on the shaft.
4. If you using a torque arm, make sure that the bolts used to mount the torque arm have a tensile strength of 10.9 or greater, and tighten them securely.
5. Set a 2mm clearance between the torque arm and the torque arm stopper. If the torque arm is rigidly mounted, it will be applying a load to the Cam Clutch which can eventually damage it.
6. Install an appropriate coupling if there is a chance that the shaft will elongate from thermal expansion as encountered in some exhaust fan auxiliary drive system applications.
7. If thrust loads are encountered, install a thrust bearing which will prevent those thrust loads from being transferred to the Cam Clutch.
8. The Cam Clutch is pre-packed with grease before shipment and is ready for installation and operation. Refer to page 80 for lubrication guidelines.
