MDEU GCr15 Single Way H7 Tolerance Cam Sprag Bearing

Ask Lasest Price
Brand Name :	SUMA
Model Number :	MDEU15
Certification :	ISO SGS
Price :	USD80-USD120 PER PIECE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union,Paypal
Delivery Time :	7-15 Days

Add to Cart

Product Details
Company Profile

MDEU GCr15 Single Way H7 Tolerance Cam Sprag Bearing

MDEU GCr15 Single Way H7 Tolerance Cam Sprag Bearing

Installation and Usage
1. The bores of the pulley, sprocket, etc., should have a tolerance of H6 or H7.
2. Built in roller type bearing, due to the structure of cam and roller.
3. When installing the Cam Clutch on the shaft, press the clutch inner race slightly.
4. Never apply thrust loads to the Cam Clutch. Other devices
Should be provided to take up thrust loads applied to the Cam Clutch.
5. In case of large radial loads applied to the Cam Clutch like installing with pulley, another bearing should be prepared so that the point of the loads can be hanged on the bearing.
6. Key should be in accordance with ISO R773 (DIN 6885.1). Note that the keyway dimensions of outer race is not in accordance with the keyway dimensions which mentioned in ISO R773 (DIN 6885.1).

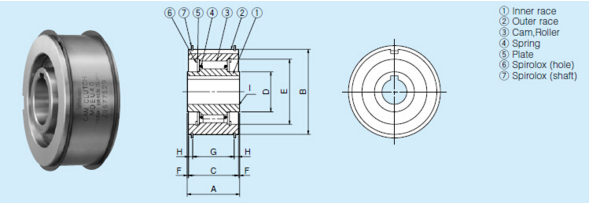

Dimensions and Capacities

Model	Torque Capacity (N@m)	Max. Overrunning (r/min) Inner Race	Max. Indexing (cycle/min)	Max.Radial Load When Overrunning (N)	Bore Size (H7)	Inner race Keyway	A	B (h7)	C	D	E	F	G	H	I	Outer race Keyway	Weight ( kg )
Model	Torque Capacity (N@m)	Max. Overrunning (r/min) Inner Race	Max. Indexing (cycle/min)	Max.Radial Load When Overrunning (N)	Bore Size (H7)	Inner race Keyway	A	B (h7)	C	D	E	F	G	H	I	Outer race Keyway	Weight ( kg )
MDEU15	70	600	100	610	15	5x2.3	39	55	37	25	42	1	30	3.5	0.8	5x3	0.52
MDEU20	150	500	100	910	20	6x2.8	42	68	40	32	52	1	33	3.5	0.8	6x3.5	0.88
MDEU25	230	450	100	1060	25	8x3.3	42	80	40	40	65	1	33	3.5	0.8	8x4	1.1
MDEU30	390	400	100	1400	30	8x3.3	50	90	48	45	72	1	36	6	1	8x4	1.7
MDEU35	460	350	100	1500	35	10x3.3	50	100	48	50	80	1	36	6	1	10x5	2.1
MDEU40	530	350	100	1580	40	12x3.3	50	110	48	55	78	1	36	6	1	12x5	2.7
MDEU45	690	300	100	1770	45	14x3.8	50	120	48	65	88	1	36	6	1	14x5.5	3.2
MDEU50	870	300	100	1880	50	14x3.8	50	130	48	70	95	1	36	6	1	14x5.5	3.8
MDEU55	1100	250	100	2850	55	16x4.3	60	140	58	80	105	1	46	6	1.5	16x6	5.3
MDEU60	1500	250	100	3060	60	18x4.4	60	150	58	90	115	1	46	6	1.5	18x7	6.1
MDEU70	1900	200	100	3470	70	20x4.9	60	170	58	100	125	1	46	6	1.5	20x7.5	7.9
MDEU80	2300	200	100	3600	80	22x5.4	60	190	58	110	140	1	46	6	1.5	22x9	9.7

Mounting and Coupling
