    NFR30 3200 RPM One Way Roller Clutch With Ball Bearings

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : NFR30
    Certification : ISO SGS
    Price : USD50-USD200 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability : 1000PCS Per Month
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

    NFR30 3200 RPM One Way Roller Clutch With Ball Bearings

    NFR30 3200 RPM One Way Roller Clutch With Ball Bearings

    Features

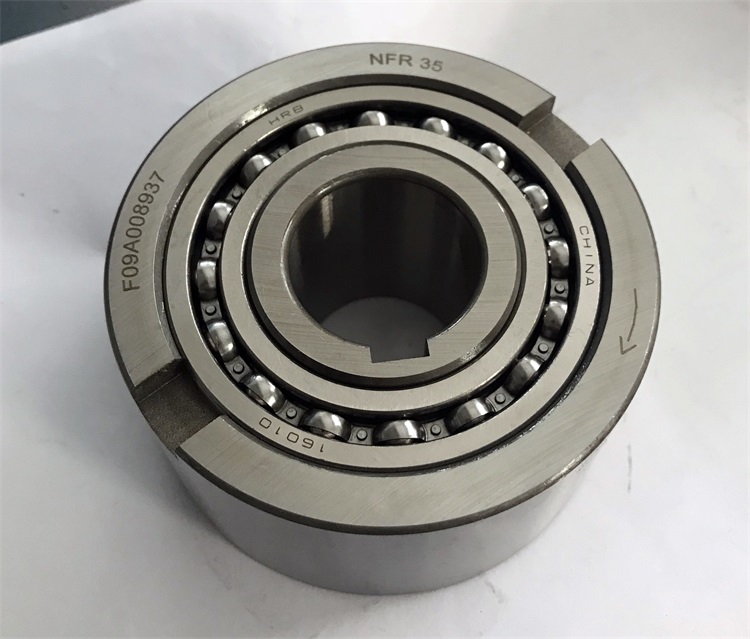

    Type NFR is a bearing supported roller type freewheelwithout any sealing. Lubrication and sealing must be

    provided by the installation. Standard lubrication is oil.Size 8 to 20 units use steel on steel bearing support

    from the inner race. Above size 25, two 160.. series ball bearings are used, giving a higher overrunning speed

    capacity. A typical arrangement is shown overleaf.

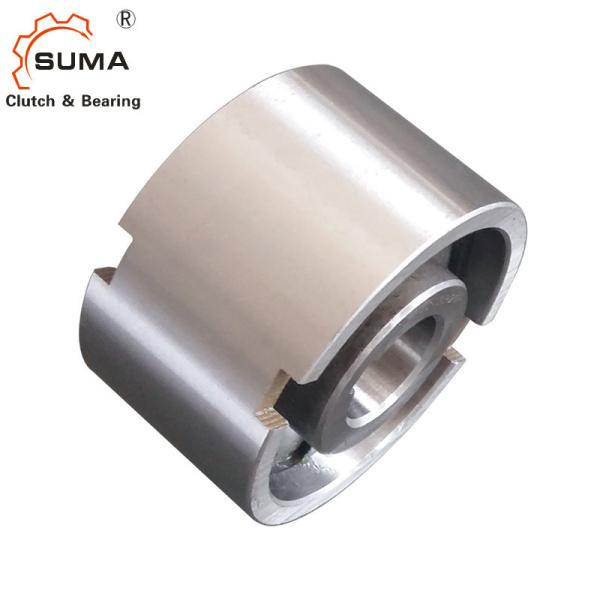

    The inner race is keyed to the shaft. The outer race has a positive n6 tolerance to give a press fit in a housing to H7.Additional side notches provide for positive torque transmission.The housing must be strong enough to not

    expand after assembly.

    Dimensions and Capacities


    TypeSizeOverrunning speedsWeight

    NFR

    (ANR-ANG)

    dH7

    (mm)

    TKN1

    (Nm )

    Nimax2)

    (min-1)

    Namax3)

    (min-1)

    Dn6

    (mm)

    D2

    (mm)

    D4

    (mm)

    L

    (mm)

    I

    (mm)

    t

    (mm)

    bH11

    (mm)

    r

    (mm)

    r1

    (mm)


    (kg)

    82010001000372030203611.50.1
    122010001000372030203611.50.1
    1578850850472637303.571.51.50.3
    20188650650623752363.58220.6
    2525021003600804068400.2492.521.2
    3050017003200904575480.25122..521.8
    35663155030001005080531.26132.52.52.4
    401100115026001105590632.271532.53.3
    451500100024001206095632.271632.54.0
    502375800215013070110802.78.5173.535.7
    552550750200014075115804.29183.536.5
    604250650190015080125953.29183.53.58.9
    7058755501750170901401101.19203.53.513.5
    80100005001600190105160125092043.519.0
    901725045014502151201801400.611.5244427.2
    1007962535012502601402101502.614.5284444.5
    130347502501000300160240180217.5325568.0

    NFR30 3200 RPM One Way Roller Clutch With Ball Bearings

    Mounting and Coupling

    Pictures
