AE30 2100 RPM One Way Freewheel Roller Clutch Bearing

Features

Type AE is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside diameter is a standard ball bearing dimension.

A typical arrangement is to install this type beside a bearing with the same housing diameter tolerance.

The inner race is keyed to the shaft. The outer race has a h6 tolerance and should be fitted in a housing with a K7 tolerance. Additional side notches provide for positive torque transmission.

If the housing tolerance is to R6, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial

misalignment of inner and outer race of ± S/2.

Technical Datas

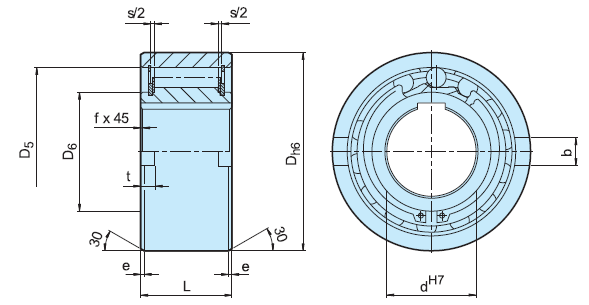

Dimensions and Capacities

Mounting and Coupling

Pictures

Changzhou Suma Precision Machinery Co., Ltd was established in 2005, which was a professional and non-stop manufacturer for mechanical parts, integrates into R&D, Design, Manufacturing and Sales .

The main Catagories are :

One Way Clutch Bearing:  CSK, ASNU, AS , NF, FE, DC, FWD, BWC, AXK, AA, B200, BB, CKA, ...

Backstop Clutch : BS, MZ, FSO, HPI,  PB, BS...R, NJ, NYD, NF, CKZ, RSBW, AV , ...

Overrunning clutch:  FXM,  GFR, RSCI, RSXM, CKL-A, CKF-A, RSBI, GFK, GV, GVG, BSEU, ...

Needle Roller Bearings: HF,HFL, RC, RCB, FC, FCB, OWC, EWC, 1WC, HK, SCE, BCE, IR, ...

Cam follower bearings : CF, KR, CFE, CFH, CYR, CYR...S, NATV, NATR, NUTR, KRV, RSTO, ...

Spherical Plain Bearings : GE, GE...ES-2RS, GE...DO-2RS, GEG...ES-2RS, GEEW...ES-2RS, GE...UK-2RS, GE...ET-2ES, ...

Advantage of Company

• ​Germany Technology Introduction ensure goods reach an top-level quality .
• Core Technical Team ensure ability to Find out - Work out problems more efficiently .
• Over 15 Years Production Experience makes us easier to find out a solution from any industrial field .
• Superior Equipment Production Line ensure goods produced under strictly quality control .
• OEM / ODM available significantly save the customer's funds and enlarge the benefits.

Advantage of Products

• High Torque Transmission
• High Load Capacity
• Preferable Wear Resistance
• Free Sample Quality Test Service （specially for small standard item）
• Pre-Lubricated ensure its Long Life Using Time

Application Field

  With a wide range of variety  ( Over 100 different patterns and more than thousands sizes available ), products are widely used in Printing Machine, Packaging Machine ,Conveyor System, Bucket Elevator, Gearbox , Reducer, Gearmotor, Electronics Toy, Hydraulic System and any power transmission industrial field.

Market

  With over 13 years experience, well equipped testing facilities and strict quality control, Changzhou Suma Precision Machinery Co., Ltd products sell well all over the world, the main markets are European, America, Canada, Brazil, India, Asia, etc . It was a certified enterprise with Quality Management System ISO9001:2015, SGS , Safety Certificate of Approval for Mining Products . In the meantime, with accurate control of key process and technical support from engineer team, customized products are also available. Stable product performance and reliable after sales service always are our only way to win customer.
