CSK25P CSK25PP One Way Sprag Overrunning CSK25 Bearing

Ask Lasest Price
Brand Name :	SUMA
Model Number :	CSK25 / CSK25P /CSK25PP
Certification :	ISO
Price :	USD2.2-USD2.9 PER PIECE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :	20000PCS PER WEEK
Delivery Time :	5-7 Days

Add to Cart

Product Details
Company Profile

CSK25P CSK25PP One Way Sprag Overrunning CSK25 Bearing

CSK25P CSK25PP One Way Sprag Overrunning CSK25 Bearing

Fearures

Types CSK..P and CSK..PP are sprag type freewheels integrated into 62.. series ball bearings (except size 40).They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.

The use of additional “nylos” type seals is recommen-ded especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.

In addition to the basic CSK model, type CSK..P features a keyway on the inner race. For this reason it can be keyed to a shaft to k6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.

CSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.

Dimensions and Capacities

Item	CSK25PP-2RS
Material	GCr15
Inner dia.	25 mm
Outer dia.	52 mm
Width	20 mm
Weight	0.175 kg
Torque	85 Nm
Drag torque	6 Ncm
Port	Shanghai:Ningbo
Delivery time	10-20 days

Type	Size	Bearing series							Bearing loads		Weight	Drag torque
Type	Size	Bearing series							dynamic	static		Drag torque
CSK..P	d		TKN1)	nmax	D	L	b	t	C	C0		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
	12	6201	9.3	10000	32	10			6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11			7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12			7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14			9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15			10.7	5.46	0.14	2
	30	6206	138	4200	62	16			11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17			12.6	7.28	0.3	5.8
	40	–	325	3000	80	22			15.54	12.25	0.5	7
CSK..PP	15	6202	17	8400	35	11	2	0.6	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	2	1	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	3	1.5	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	6	2	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	6	2	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	8	2.5	12.6	7.28	0.3	5.8
	40	–	325	3000	80	22	10	3	15.54	12.25	0.5	7
CSK..P-2RS	12	–	9.3	10000	32	14			6.1	2.77	0.05	3
	15	–	17	8400	35	16			7.4	3.42	0.07	4
	17	–	30	7350	40	17			7.9	3.8	0.09	5.6
	20	–	50	6000	47	19			9.4	4.46	0.145	6
	25	–	85	5200	52	20			10.7	5.46	0.175	6
	30	–	138	4200	62	21			11.7	6.45	0.27	7.5
	35	–	175	3600	72	22			12.6	7.28	0.4	8.2
	40	–	325	3000	80	27			15.54	12.25	0.6	10

Mounting and Coupling

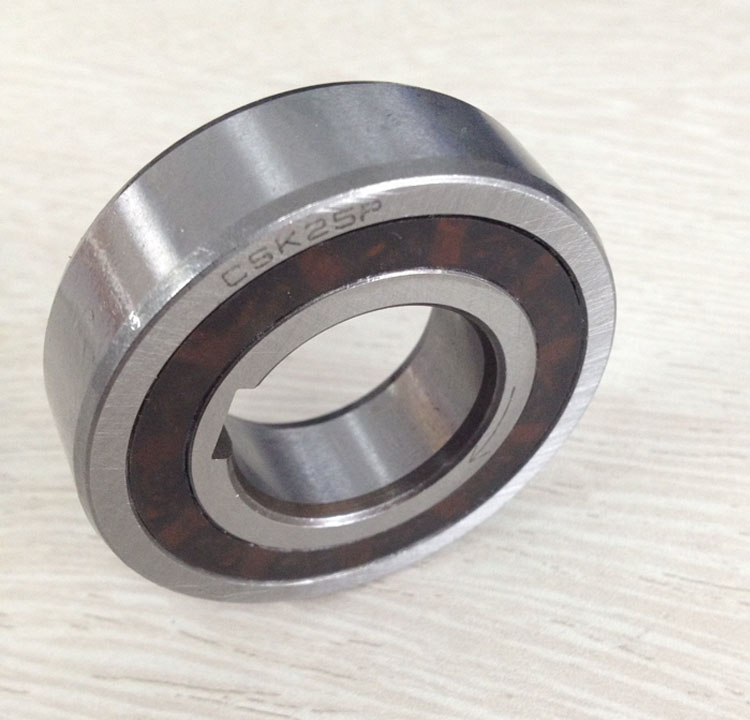

PRODUCT PICTURE
