NF50 Freewheel One Way Sprag Bearing

Ask Lasest Price
Brand Name :	SUMA
Model Number :	NF50
Certification :	ISO SGS
Price :	USD160-USD200 PER PIECE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :	1000PCS Per Month
Delivery Time :	10-15 Days

Add to Cart

Product Details
Company Profile

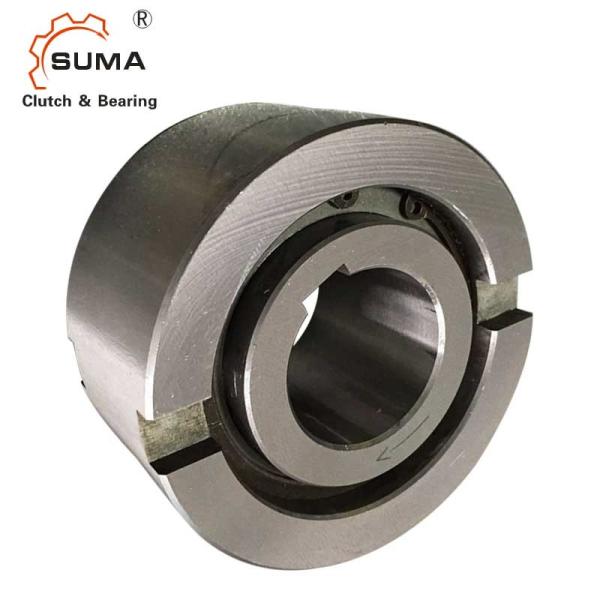

NF50 Freewheel One Way Sprag Bearing

NF50 Freewheel One Way Sprag Bearing

Features

Type NF is a roller type freewheel non-bearing supported. Bearings are required to support axial

and radial loads. Lubrication and sealing must also be provided by the installation.

Standard lubrication is oil. Nominal outside diameter is a standard ball bearing dimension. A typical arrangement is to install this type alongside a bearing with the same housing tolerances, as shown on the following page. The inner race is keyed to the shaft. The outer race has a positive n6 tolerance to give a press fit in a H7 housing. Additional side notches provide for positive torque transmission.

If the housing tolerance is to K6, use of the notches is not necessary, but the housing must be strong enough tonot expand after assembly.

Dimensions and Capacities

Type	Size		Overrunning speeds								Weight
NF	d^H7	T_KN¹)	n_imax²)	n_amax³)	D_n6	D₅	D₆	L	t	b^H11
	[mm]	[Nm]	[min-1]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
	8	20	5000	6000	37	30	20	20	3	6	0.1
	12	20	5000	6000	37	30	20	20	3	6	0.1
	15	78	4500	5400	47	37	26	30	3.5	7	0.3
	20	188	3000	3600	62	52	37	36	3.5	8	0.6
	25	250	2200	2600	80	68	49	40	4	9	1.1
	30	500	1800	2100	90	75	52.5	48	5	12	1.6
	35	663	1600	1950	100	80	58	53	6	13	2.3
	40	1100	1250	1700	110	90	62	63	7	15	3.1
	45	1500	1100	1500	120	95	69	63	7	16	3.7
	50	2375	850	1300	130	110	82	80	8.5	17	5.4
	55	2500	800	1200	140	115	83	80	9	18	6.1
	60	4250	700	1100	150	125	93.5	95	9	18	8.5
	70	5875	620	900	170	140	106	110	9	20	13
	80	10000	550	800	190	160	122	125	9	20	18
	90	17250	480	700	215	180	133	140	11.5	24	25.3
	100	19625	400	600	260	210	157	150	14.5	28	42.1
	130	34750	300	480	300	240	188	180	17	32	65
	150	44375	250	400	320	260	205	180	17	32	95

NOTES

1) T max = 2 × T KN

» Refer to Selection page 10 to 13

2) Inner race overruns

3) Outer race overruns
Mounting and Coupling
