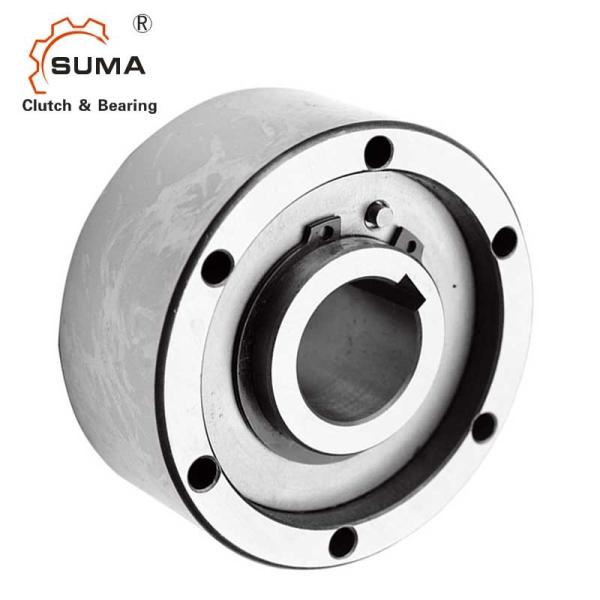

    AA20 Backstop One Way Clutch Bearing

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : AA20
    Certification : ISO SGS
    Price : USD60-USD80PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability : 1000PCS Per Month
    Delivery Time : 10-15 Days
    MOQ : 5-
    • Product Details
    • Company Profile

    AA20 Backstop One Way Clutch Bearing

    AA20 Backstop One Way Clutch Bearing

    Features

    AA is a roller type freewheel non-bearing supported.

    Bearings are required to support axial and radial loads.

    Lubrication and sealing must also be provided by the installation.


    Technical Datas

    SPECIFICATION
    Product nameAA engine bearing
    ModelAA20
    MaterialGCr15
    Inner diameter20mm
    Outer diameter68mm
    Thickness34mm
    Torque capacity146Nm
    Drag Torque8.4Ncm
    Inner race overrunning speed2000r/min
    Outer race overrunning speed3600r/min
    Weight0.7kg
    StructureRoller type
    ApplicationTextile machine, fans, ventilators, printing machine
    PackageCarton Box, Wooden Box or Customized
    Payment termsTT. L/C, D/A,D/P,Western Union, Paypal
    Delivery time2-4 days for the sample, 7 days for big order

    Dimensions and Capacities


    SizeTK1Overrunning speedsWeight

    Drag

    torque

    dH7Nimax2)Namax3)Dh7D5D6D3ZOLfs(kg)TR
    (mm)(Nm )(min-1)(min-1)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(Ncm)
    1217310060004728203835.5200.54.50.210.7
    1555230054005537264535.5300.84.50.443.5
    20146200036006850355845.5340.85.50.78.4
    2528517002600906845765.53716.51.314
    305001500210010075508766.64416.5223
    357201300195011080559666.64816.52.660
    40103012001700125906010869561.57.63.972
    45112510501500130956511289561.57.64140
    50215095013001501107513289631.57.66180
    5526758501200160115821388116727.67.2190
    60350080011001701259015010117827.69.2240
    7058136509001901401001651011952.57.611.8320


    NOTES

    1) T max = 2 × T KN
    2) Inner race overruns
    3) Outer race overruns
    Keyway to DIN 6885.1


    Mounting and Coupling

    Pictures

    AA20 Backstop One Way Clutch Bearing


    Q: How do you pack the goods?

    • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
    • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

    Q: Can i get the samples from you?

    A: It is highly encouraged to ask for the samples for quality check.

    Q: Can you promise to deliver the goods in time?

    • Small items: In stock.
    • Medium Items: 10-15 Days
    • Big items: 20-25 Days
