    FPD448Z 35*53*34mm Freewheel One Way Clutch Bearing

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : FPD448Z
    Certification : ISO SGS
    Price : USD60-USD70 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability : 1000PCS Per Month
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

    FPD448Z 35*53*34mm Freewheel One Way Clutch Bearing

    FPD448Z 35*53*34mm Freewheel One Way Clutch Bearing

    Features

    Bearing

    The freewheel clutch includes ball and roller bearings.Additional external bearing support is not necessary.

    Press fit pressure

    Press fit pressure must not be applied to the balls.

    Clamping direction

    The arrow on the inner ring designates the inner ring's clamping direction.

    Width:34 mm

    Operating temperature:max. 100° C

    Lubrication

    Operative lifetime oil lubrication

    Installation

    Installation tolerances

    Shaft h5; hub H6

    Mating parts

    Hardening and grinding of the mating parts is not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.

    Components

    Freewheel clutch
    insert element*FE 400 M (meander spring)

    FE 400 Z (tension spring)

    + RacewaysBearing steel, hardened and ground
    inner ringPress fit

    outer ring


    Press fit

    + Ball bearingIntegrated

    + Roller bearing


    RL 400

    + LubricationLifetime oil lubrication

    Technical Datas

    Dimensions and Capacities

    ModeldDWTnomnmaxCdyn.Cstat.WeightItem no.
    [mm][mm][mm][Nm][rpm][N][N][kg]
    FPD 427 M153134942,0007,6796,3970.09306516
    FPD 427 Z153134842,0007,6796,3970.09306517
    FPD 432 M2036341331,8008,1047,2410.12306518
    FPD 432 Z2036341211,8008,1047,2410.12306519
    FPD 437 M2541341761,7009,2018,1420.15306520
    FPD 437 Z2541341601,7009,2018,1420.15306521
    FPD 442 M3046342231,50010,24710,7080.18300696
    FPD 442 Z3046342081,50010,24710,7080.18300697
    FPD 448 M3553342861,30011,64213,4400.23306524
    FPD 448 Z3553342621,30011,64213,4400.23306525
    FPD 453 M4058343431,20011,41713,5770.26300702
    FPD 453 Z4058343141,20011,41713,5770.26300700
    FPD 463 M5068344611,10013,07017,0630.34306534
    FPD 463 Z5068344281,10013,07017,0630.34306535
    FPD 473 M607834588100014128198960.41306536
    FPD 473 Z607834543100014128198960.41306537

    Pictures

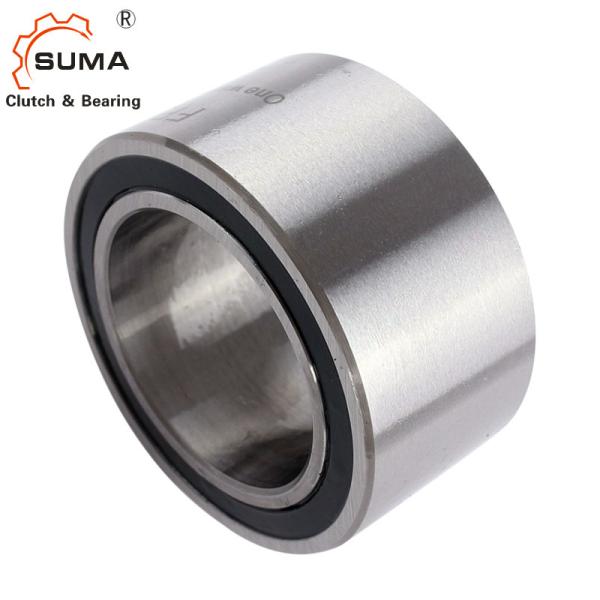

    FPD448Z 35*53*34mm Freewheel One Way Clutch Bearing

    Quality FPD448Z 35*53*34mm Freewheel One Way Clutch Bearing for sale
