    ASK40 Backstop Clutch 40MM One Way Clutch Bearing

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : ASK40
    Certification : ISO SGS
    Price : USD80-USD100 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability : 1000PCS Per Month
    Delivery Time : 10-15 Days
    MOQ : 5-
    • Product Details
    • Company Profile

    ASK40 Backstop Clutch 40MM One Way Clutch Bearing

    ASK40 C4 Clearance Backstop 40MM One Way Clutch Bearing

    Features

    1. Type ASK is a roller type freewheel bearing supported by two rows of roller bearings.

    2. The standard radial clearance is C4

    3. Shaft tolerance should be h6 or j6

    4. Type ASK freewheels can not accept axial loading. In cases of such loads, thrust bearings must be provided

    Technical Datas

    ModelASK40
    MaterailGCr15
    Inner Diameter40mm
    Outer diameter68mm
    Thickness15mm
    Torque capacity72Nm
    Drag Torque15Ncm
    Max overrunning speed3500r/min
    ApplicationBackstop, Overrunning
    Packagecarton package / Wooden package
    Delivery time5-7 days
    Payment termsTT, L/C, D/P, D/A, Western Union, Paypal

    Dimensions and Capacities

    TypeSizeBearing SeriesTKN1)nmaxOutside DiameterHeightBearing loadsWeightDrag torque
    Dynamicstatic
    ASKDp6
    (mm)

    (Nm)

    (min-1)
    D
    (mm)
    L
    (mm)
    C
    (kN)
    C0
    (kN)
    (kg)TR
    (Ncm)
    40600872350068151620.60.2515
    5060101252200801619.623.50.3420
    6060122501800951825.335.10.525

    NOTES
    1) Tmax = 2 × TKN
    » Refer to Selection page 10 to 13
    » Refer to mounting and maintenance instructions page 16 to 19

    Mounting Example

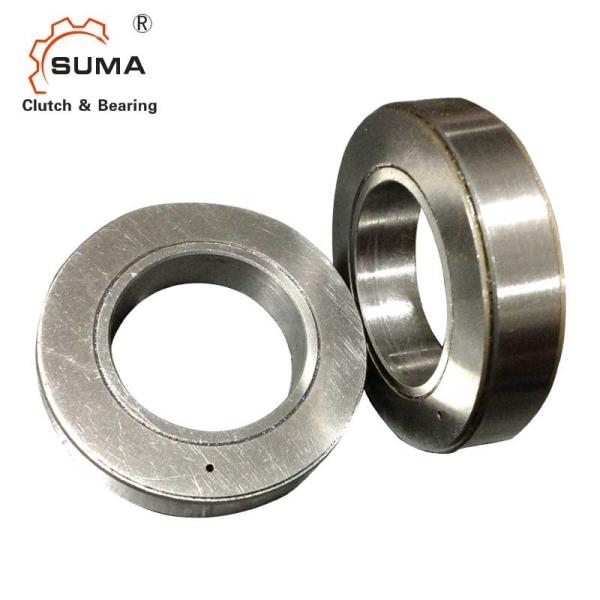

    Pictures

    ASK40 Backstop Clutch 40MM One Way Clutch Bearing
