USNU12 Sprag Freewheels One Way Clutch Bearing

Features

• This series freewheels are not self-centering. It is therefore necessary to place one or two bearings next to the freewheel so that the outer race can rotate centrally to the inner race. USNU freewheels have ball bearings with the same dimensions as the 63.. Series.
• The torque forces are transmitted from the shaft to the inner race by means of a key and from the outer race to the seating by means of front pullers or by means of an interference fit if the seating tolerance is made a K6.
• Shaft tolerance must be either h6 or j7; the tolerances for the seating must be either h7 or F7. When front pullers are not used, the seating tolerance should be k6.
• Before being put onto service, the freewheels must be lubricated with suitable lubricants following the instructions given on page 12. Oil lubrication is essential when a high number of rotations in neutral is reached.

Width:34 mm

Operating temperature: max. 100° C

Lubrication: Operative lifetime oil lubrication

Installation tolerances: Shaft h5; hub H6

Dimensions and Capacities

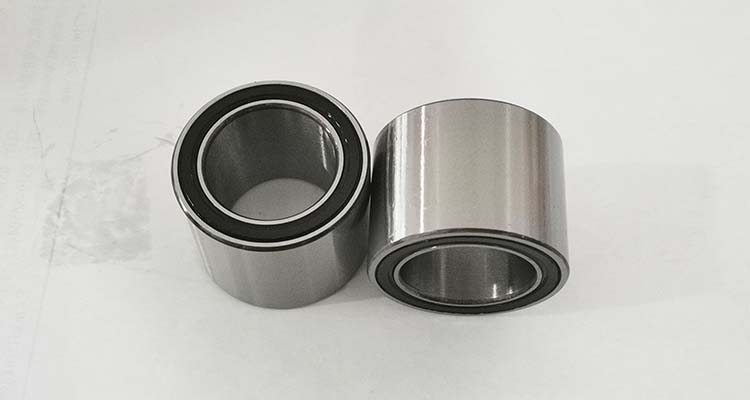

Pictures

Changzhou Suma Precision Machinery Co., Ltd was established in 2005, which was a professional and non-stop manufacturer for mechanical parts, integrates into R&D, Design, Manufacturing and Sales .

The main Catagories are :

One Way Clutch Bearing:  CSK, ASNU, AS , NF, FE, DC, FWD, BWC, AXK, AA, B200, BB, CKA, ...

Backstop Clutch : BS, MZ, FSO, HPI,  PB, BS...R, NJ, NYD, NF, CKZ, RSBW, AV , ...

Overrunning clutch:  FXM,  GFR, RSCI, RSXM, CKL-A, CKF-A, RSBI, GFK, GV, GVG, BSEU, ...

Needle Roller Bearings: HF,HFL, RC, RCB, FC, FCB, OWC, EWC, 1WC, HK, SCE, BCE, IR, ...

Cam follower bearings : CF, KR, CFE, CFH, CYR, CYR...S, NATV, NATR, NUTR, KRV, RSTO, ...

Spherical Plain Bearings : GE, GE...ES-2RS, GE...DO-2RS, GEG...ES-2RS, GEEW...ES-2RS, GE...UK-2RS, GE...ET-2ES, ...

Advantage of Company

• ​Germany Technology Introduction ensure goods reach an top-level quality .
• Core Technical Team ensure ability to Find out - Work out problems more efficiently .
• Over 15 Years Production Experience makes us easier to find out a solution from any industrial field .
• Superior Equipment Production Line ensure goods produced under strictly quality control .
• OEM / ODM available significantly save the customer's funds and enlarge the benefits.

Advantage of Products

• High Torque Transmission
• High Load Capacity
• Preferable Wear Resistance
• Free Sample Quality Test Service （specially for small standard item）
• Pre-Lubricated ensure its Long Life Using Time

Application Field

  With a wide range of variety  ( Over 100 different patterns and more than thousands sizes available ), products are widely used in Printing Machine, Packaging Machine ,Conveyor System, Bucket Elevator, Gearbox , Reducer, Gearmotor, Electronics Toy, Hydraulic System and any power transmission industrial field.

Market

  With over 13 years experience, well equipped testing facilities and strict quality control, Changzhou Suma Precision Machinery Co., Ltd products sell well all over the world, the main markets are European, America, Canada, Brazil, India, Asia, etc . It was a certified enterprise with Quality Management System ISO9001:2015, SGS , Safety Certificate of Approval for Mining Products . In the meantime, with accurate control of key process and technical support from engineer team, customized products are also available. Stable product performance and reliable after sales service always are our only way to win customer.
