GP Series GP4445A Overrunning Clutch One Way Bearing Sprag

Brief Introduction

The GP Series... is a cage with contact elements running as freewheel on races primarily measured in inches.

The smaller dimensions and the high transmission torque offer some interesting technical and cost-saving solutions.

Fitting multiple cages side-by-side increases torques.

It is necessary to place one or two bearings next to the freewheel so that the outer race can rotate centrally to the inner race.

When the sliding race is machined in the seats or on the shafts, the following specifications

1) must be adhered to 60/62 HRC surface hardness

2) 1 mm minimum depth of tempering after grinding

3) ensure the concentric rotation of the races

4) lubrication suitable for the application.

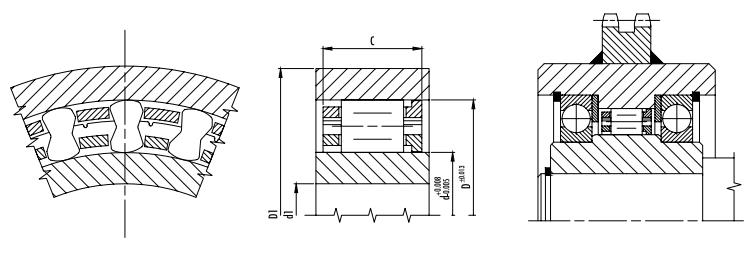

Dimensions and Capacities

NOTES
1) T max = 2 × T KN
» Refer to Selection page 12 to 19
2) Inner race overruns
3) Outer race overruns
*) The inner cage centering flange is on the opposite
side
**) Extension of tolerance to ± 0,013 permissible

Mounting Example
