    CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : CCFH-3/4-SB
    Certification : ISO SGS
    Price : USD3-USD5 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal
    Supply Ability : 100000 PCS PER MONTH
    Delivery Time : 2-3Days
    • Product Details
    • Company Profile

    CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB

    CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB


    Features of Heavy Duty Cam Follower

    CCFH-1-B Crowned With Hex Hole Heavy duty cam follower
    CCFH-1-SB Crowned Seald and Hex Hole Heavy duty cam follower

    The typical functions of a cam follower are to provide anti-friction support of linear movement or to follow the surface of a cam.

    SUMA Stud Cam Follower was designed to withstand the intermittent shock, loading and precision requirements associated with these applications.

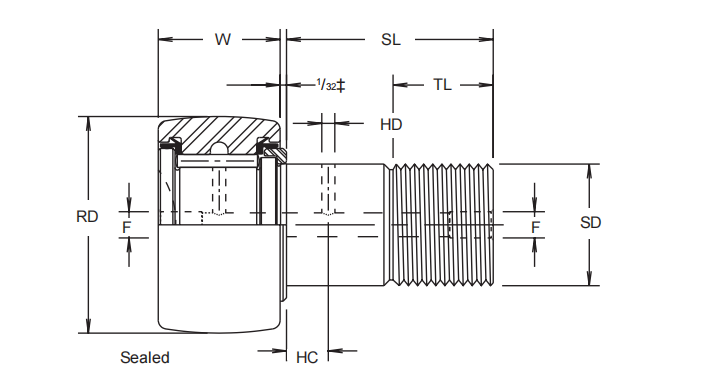

    Technical Datas of Heavy Duty Cam Follower

    INSEALED
    BRG.
    NO.
    ROLLER
    DIA
    (RD)
    ROLLER
    WIDTH
    (W)
    STUD
    DIA
    (SD)
    STUD
    LENGTH
    (SL)
    MIN.
    THREAD
    LENGTH
    (TL)
    FINE
    THREAD
    OIL HOLELUS
    FITTING
    SIZE
    (F)
    RRCOM.
    CL AMPING
    TORQUE
    LSS.
    IN
    MAX
    STATIC
    CAPACITY
    LSS.
    SASIC
    DYN.
    RATING
    LSS.
    HOLE
    CENTER
    (HC)
    HOLE
    DIA(HD)
    CCFH-1/2-S0.5000.3750.2505/81/41/4-28351580680
    CCFH-9/16-S0.56250.3750.2505/81/41/4-28351580680
    CCFH-5/8-S0.6250.43750.31253/45/165/16-24902480955
    CCFH-11/16-S0.68750.43750.31253/45/165/16-24902480955
    CCFH-3/4-S0.7500.5000.43757/83/87/16-201/43/323/1625041301660
    CCFH-7/8-S0.8750.5000.43757/83/87/16-201/43/323/1625041301660
    CCFH-1-S1.0000.6250.62511/25/8-181/43/323/1665061202225
    CCFH-1 1/8-S1.12500.6250.62511/25/8-181/43/323/1665061202225
    CCFH-1 1/4-S1.2500.7500.7501 1/45/83/4-165/163/323/16125085003930
    CCFH-1 3/8-S1.3750.7500.7501 1/45/83/4-165/163/323/16125085003930
    CCFH-1 1/2-S1.5000.8750.8751 1/23/47/8-143/83/323/161500112804840
    CCFH-1 5/8-S1.6250.8750.8751 1/23/47/8-143/83/323/161500112804840
    CCFH-1 3/4-S1.7501.0001.0001 3/47/81-147/163/323/162250158406385
    CCFH-1 7/8-S1.8751.0001.0001 3/47/81-147/163/323/162250158406385
    CCFH-2-S2.0001.1251.125211 1/8-121/21/83/162800211408090
    CCFH-2 1/4-S2.2501.1251.125211 1/8-121/21/83/162800211408090
    CCFH-2 1/2-S2.5001.2501.2502 1/41 1/81 1/4-129/161/83/1634503290011720
    CCFH-2 3/4-S2.7501.2501.2502 1/41 1/81 1/4-129/161/83/1634503290011720
    CCFH-3-S3.0001.5001.5002 1/21 1/41 1/2-125/81/81/450004982015720
    CCFH-3 1/4-S3.2501.5001.5002 1/21 1/41 1/2-125/81/81/450004982015720
    CCFH-3 1/2-S3.5001.7501.7502 3/41 3/81 3/4-1211/161/81/450006325022800
    CCFH-4-S4.0002.0002.0003 1/21 1/22-123/41/81/450008954029985

    Application of Heavy Duty Cam Follower

    Food and BeveragePackaging equipmentUnit material handling
    Auto PlantsOil DrillingSteel Mills
    Texitiles / PrintingAutomation equipmentMachine Tools

    Pictures of Heavy Duty Cam Follower

    FAQ

    Q: How do you pack the cam follower ?

    • Total less than 25 KG : Each in plastic bag + 29*28*19CM carton box
    • Total Weight over 100KG : Each in plastic bag + 29*28*19CM carton box + Wooden Box / Wooden Pallet

    Q: Can i get the samples from you?

    A: It is highly encouraged to ask for the samples for quality check.

    Q: Can you promise to deliver the goods in time?

    • Small Quantity: In stock.
    • Medium Items: 5-7 Days
    • Big items: 10-15 Days
