    FND470Z 40*75*34MM 509Nm One Way Clutch Freewheel Backstop Clutch

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : FND470Z
    Certification : ISO SGS
    Price : USD100-USD140 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability : 1000PCS Per Month
    Delivery Time : 3-7 Days
    • Product Details
    • Company Profile

    FND470Z 40*75*34MM 509Nm One Way Clutch Freewheel Backstop Clutch

    FND470Z 40*75*34MM 509Nm One-Way Clutch Freewheel Backstop Clutch


    Features

    Width 34 mm
    Operating temperature max. 100°C
    Lubrication Operative lifetime oil lubrication
    Installation tolerances
    Shaft js6 (k5); hub H6
    Mating parts
    Hardening and grinding of the mating parts is not necessary.
    Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
    Bearing
    The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.
    Press fit pressure
    Press fit pressure must not be applied to the balls.
    Clamping direction
    The arrow on the inner ring designates the inner ring's clamping
    direction.

    Technical Datas

    ItemFND470Z
    MaterialGCr15
    Bore dia.40 mm
    Outer dia.75 mm
    Width (B)34 mm
    Torque capacity509 N.m
    Overrunning limiting speed (inner race)1000 r/min
    Weight0.69 kg
    PackageCarton box or as your requirements

    Dimensions and Capacities


    DesignationdDWTnomnmaxCdyn.Cstat.WeightbtItem no.
    [mm][mm][mm][Nm][rpm][N][N][kg][mm][mm]
    FND 437 M1541341761,7008,9628,6610.2452.3300737
    FND 437 Z1541341611,7008,9628,6610.2452.3300738
    FND 442 M2046342231,50010,24710,7080.2862.8300743
    FND 442 Z2046342081,50010,24710,7080.2862.8300744
    FND 453 M2558343431,20011,41713,5770.4683.3300751
    FND 453 Z2558343141,20011,41713,5770.4683.3300752
    FND 459 M3064344111,10012,69116,3200.5583.3300758
    FND 459 Z3064343811,10012,69116,3200.5583.3300760
    FND 463 M3568344621,10013,07017,0630.6103.3306528
    FND 463 Z3568344281,10013,07017,0630.6103.3306529
    FND 470 M4075345501,00014,05019,8400.69123.3300765
    FND 470 Z4075345091,00014,05019,8400.69123.3300766
    FND 473 M4578345881,00014,12819,8960.73143.8306532
    FND 473 Z4578345431,00014,12819,8960.73143.8306533

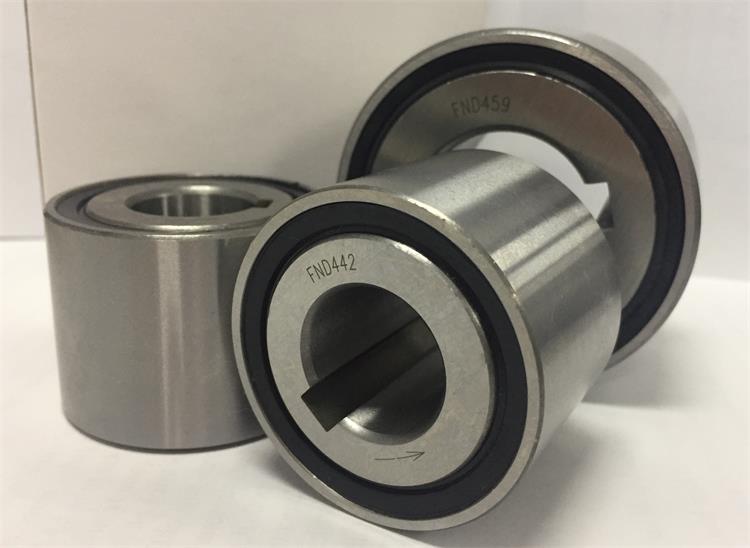

    Pictures

    FND470Z 40*75*34MM 509Nm One Way Clutch Freewheel Backstop Clutch

    FND470Z 40*75*34MM 509Nm One Way Clutch Freewheel Backstop Clutch

    Quality FND470Z 40*75*34MM 509Nm One Way Clutch Freewheel Backstop Clutch for sale
