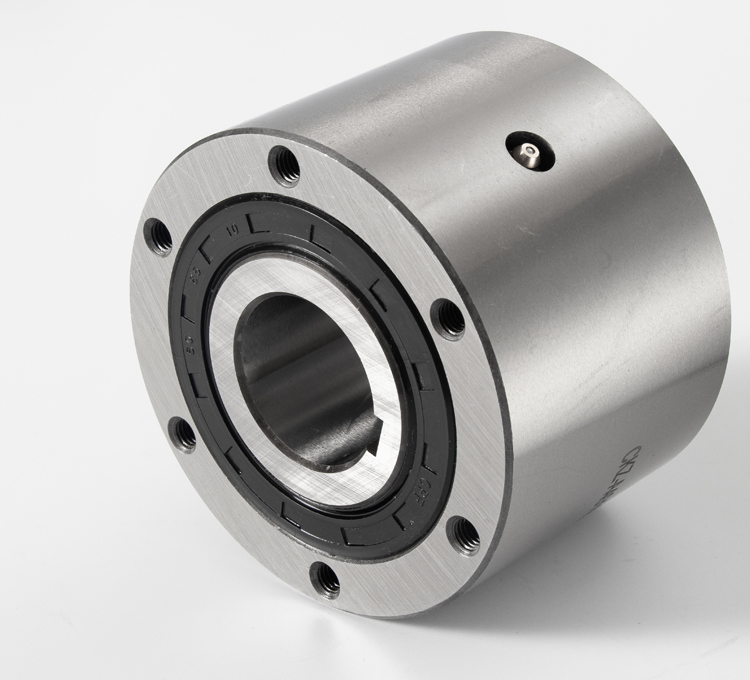

    FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : FSO750 HPI750
    Certification : ISO SGS
    Price : USD520-USD650 PER PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

    FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated

    FSO750 HPI750 One Way Backstop Clutch Cam Clutch Sprag Bearings


    Features

    Types FSO, FSO-GR, and HPI 750 to 1027 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.


    Lubrication

    Types FSO and HPI are oil lubricated and use standard shaft lip seals.
    Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals.

    Type HPI is specially designed for high speed indexing applications.

    Dimensions and Capacities
    FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated

    Size

    Torque

    [Nm]

    Overrunning speeds

    [min-1]

    DIMENSION [mm]LubricantWeighttorque
    FSOFSdH7-bxhd4)AB5)CDEFGzJKLPfFSOHPIFSTR
    TKN1)nmax2)nmax3)min-max-0.05[kg][Ncm]
    75096601800/6501000/65065-18x1157–87152.4222.25149.231.71.6107.74177.88*M12251/2-2049.21.6222384207385.08
    70-20x12
    75-20x12
    80-22x14
    800179401500/525850/52585-22x1466–112152.4254149.231.71.6139.72278M12251/2-2049.21.6222444251467.12
    80-22x14
    90-25x14
    100-28x16
    110-28x16
    900244081350/500700/500100-28x1692–138161.9304.8158.734.91.6161.92247.6510M16321/2-20541.6532473340718.47
    110-28x16
    120-32x18
    130-32x18
    102736612700/375500/375130-32x18125–177168.3381165.134.93.2228.6298.4512M16321/2-20543.265194647311313.56
    150-36x20
    175-45x25



    NOTES

    1) T max = 2 times;
    2) Inner race/outer race
    3) Inner race/outer race labyrinth seal
    4) Inch bore available on request
    5) Only for oversize bore
    Size 600 > 50 mm
    Size 700 > 75 mm
    *) 6 holes equally spaced at 60; plus 2 extra-holes at 180; Refer to mounting and maintenance instructions
